Dataset

Dataset Panel

The Dataset Panel offers a list of datasets. A Dataset is a list of (hierarchical) Concepts.

image-20220701103125611

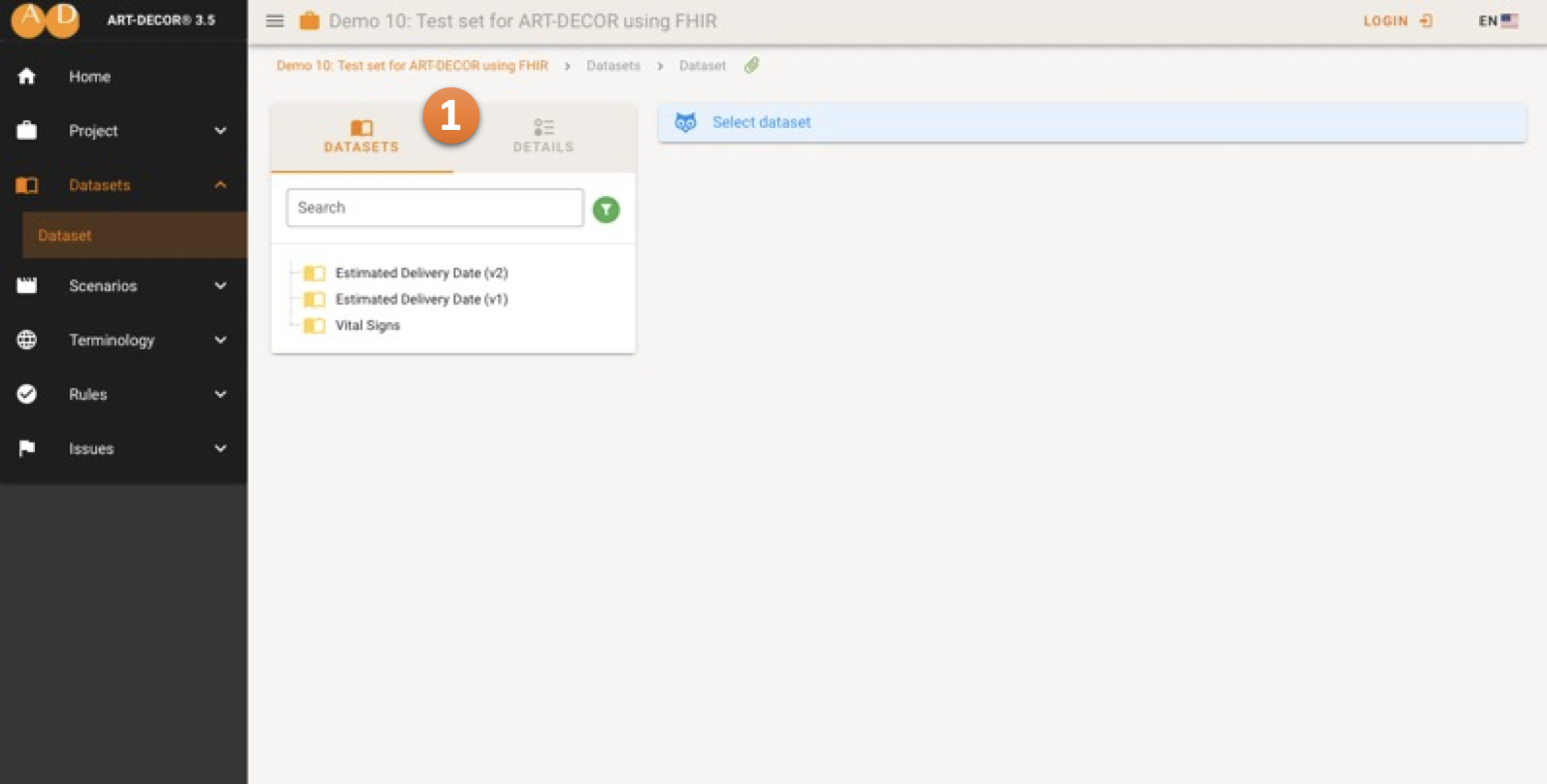

When opening the Dataset Panel, the Navigation Card on the left 1 shows the list of Datasets of the Project.

Choosing a Dataset

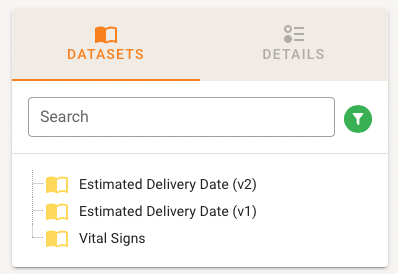

Clicking on a Dataset in the the Navigation Card immediately switches the Navigation tree to show details of the selected Dataset where you can find all the concepts.

image-20220701103427919

Adding an empty DatasetNEW

image-20220701104035535

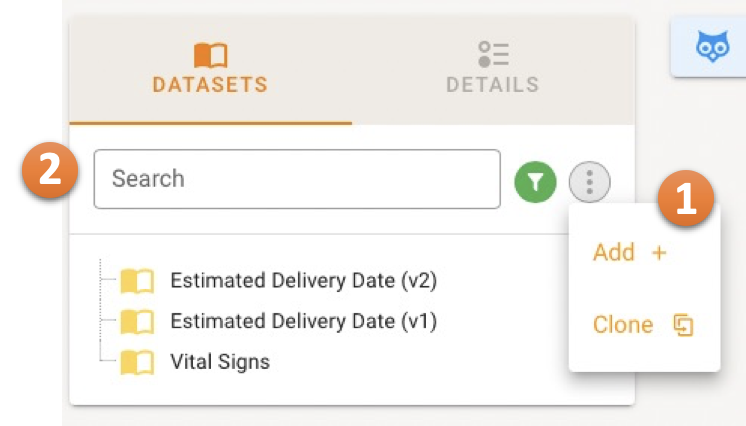

By clicking on the menu 1 you can choose the option to add a new Dataset or to clone a Dataset.

In the Search bar 2 you can search for a Dataset in the tree. This makes especially sense if your Project has many Datasets.

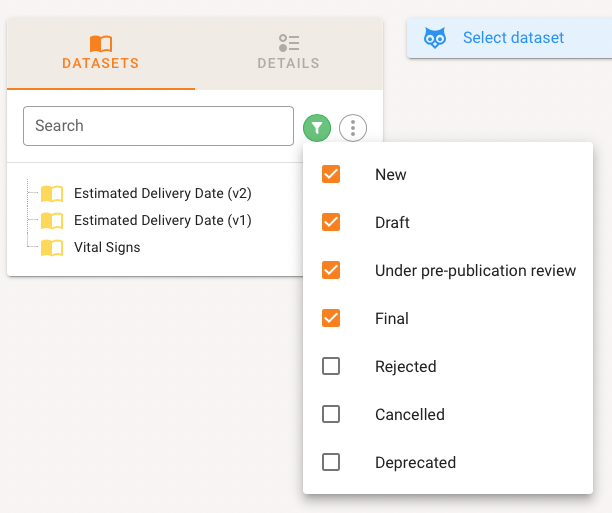

You can also filter out a status code for the Dataset by clicking on the filter button.

image-20220701104133601

Concept Detail Panel

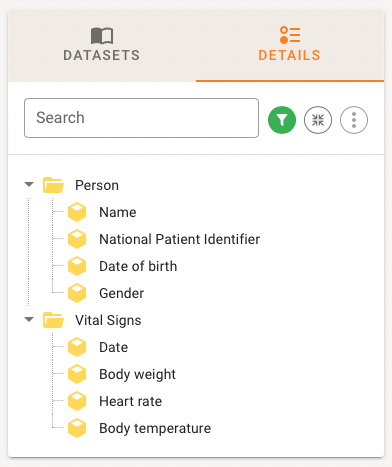

After choosing a Dataset, the concept Detail Panel opens where you can find the list of Concepts for that specific Dataset. You can also search for a concept with the search bar or filter out concepts based on their status.

image-20220701104233458

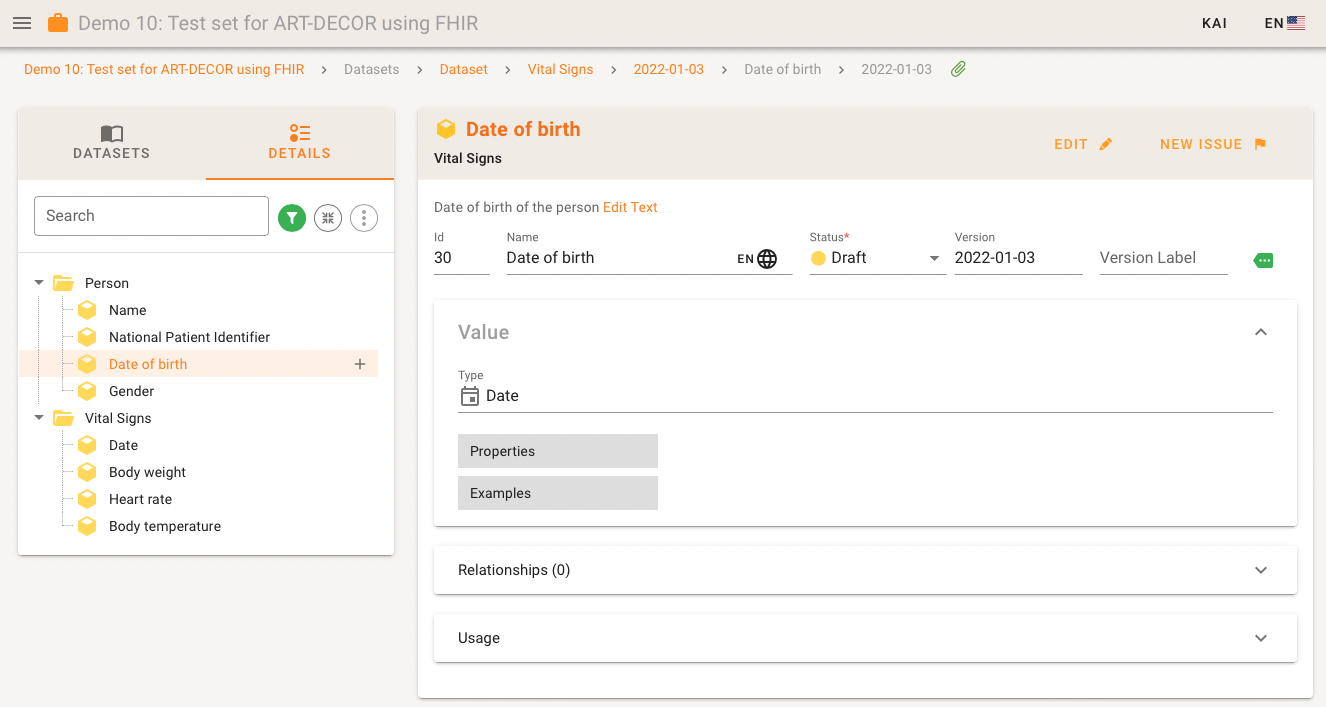

By clicking on a Concept the details of that Concept are shown on the right where you can find the metadata and further details.

image-20220701104333724

Editing Concepts

Editing Concept details is done in two ways.

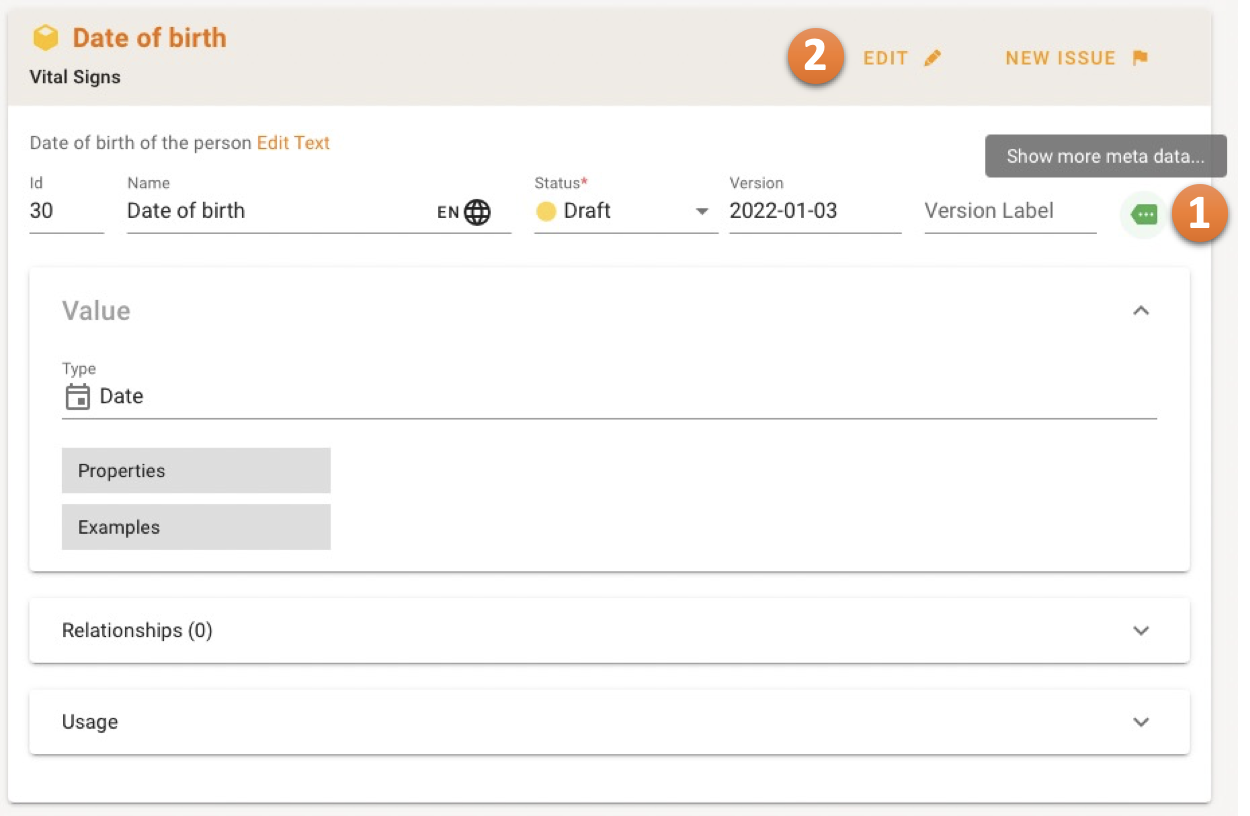

By clicking on the Show more metadata button 1you can see more metadata. For metadata you are able to directly edit the corresponding fields.

To edit the details of the Concept you select the EDIT button 2.

image-20220701104716257

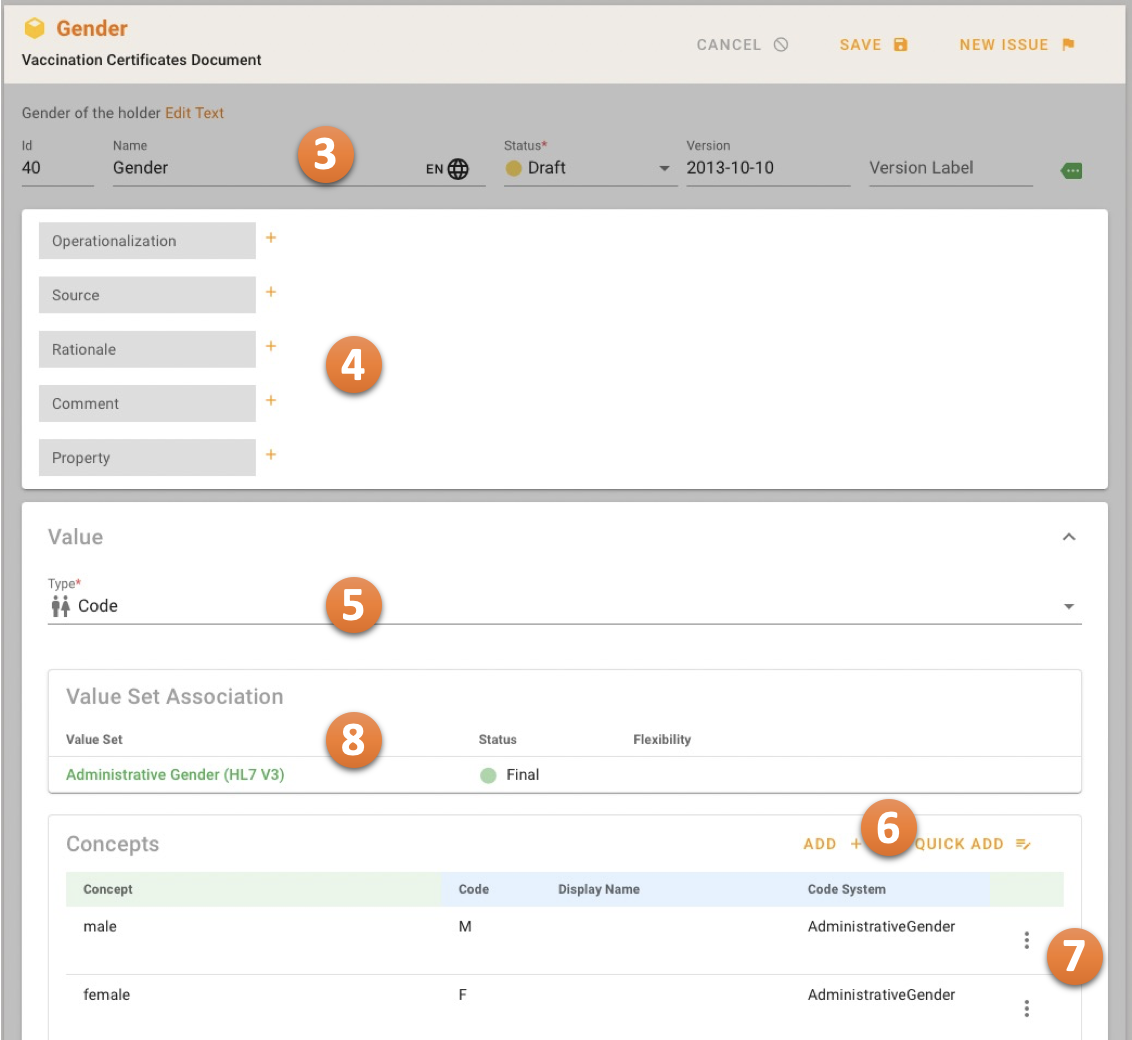

When switched to edit-mode, the concepts gets into the focus of the screen, everything around the Concept Details is grayed out 3. There are multi-lingual fields 4 to be added: Operationalization, Source, Rationale, Comment. Also Properties may be added, essentially a entity-value pair providing additional classifications for your dataset concept.

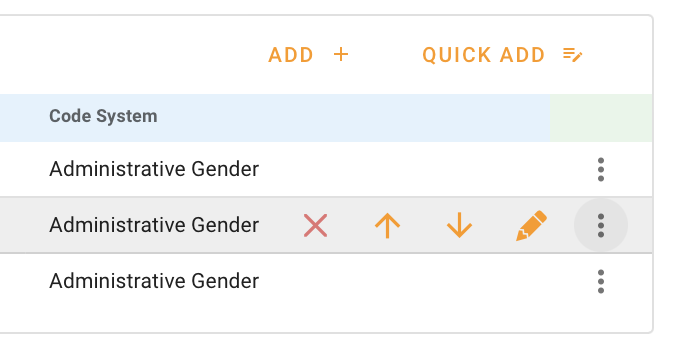

For items, the Value Domain 5 allows to specify a datatype for the concept. If a Concept has a coded datatype you may also add Choices to the Choice List listed at 6. The ADD button offers a dialog to add a singular Choice Concept with all details. To just add a quick list of terms use the QUICK ADD button. Choices maybe refined later through the edit menu per row of choice 7.

image-20220705105942314

Value Set Associations are displayed here only 8. To manage Associations to have to go to the approriate Mapping / Associations Panel in the Terminology Menu.

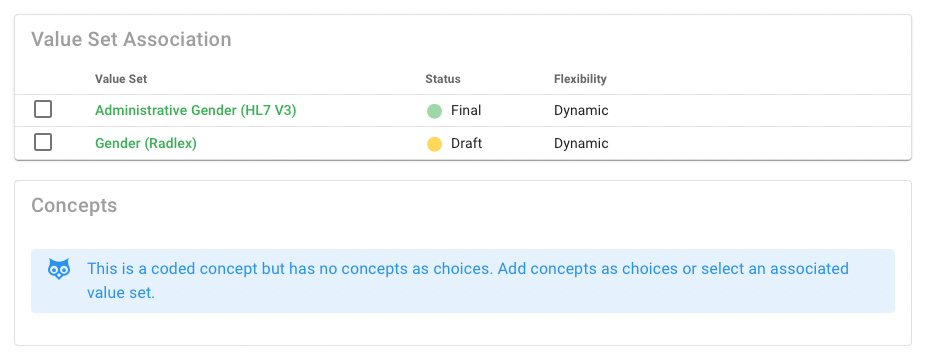

If a Dataset Concept is of type code, has no choice list but one or more Value Set Associations, the Concepts in 7 are populated with the Value Set codes due to lack of a choice list. If only one Value Set Associations exist, it is preselected and the content is directly shown. If there is more than one Value Set Association, you can select one (check box) to be shown.

image-20220928190923537

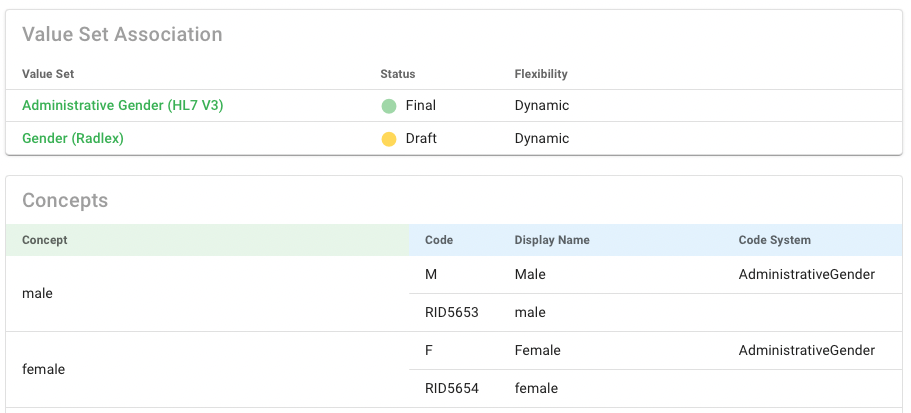

If the multiple Value Set Associations and multiple Value Set Concept Associations, all assocations are combined in the view.

image-20220928191334487

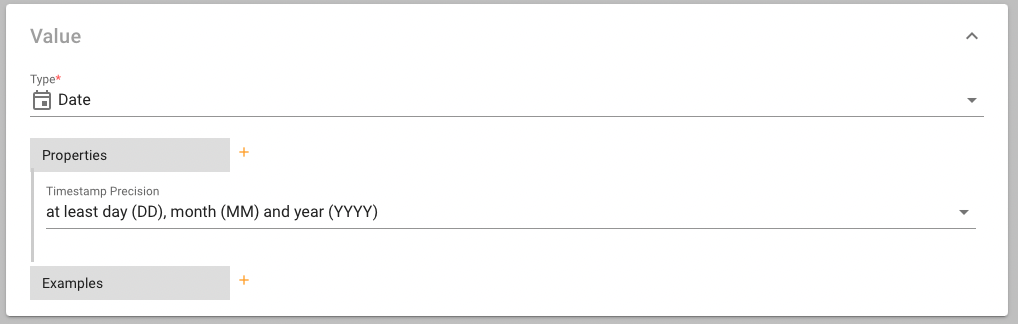

Value Domains may have various Properties, the availability depends on the datatype. For example, a date may have a precision.

image-20220701124041648

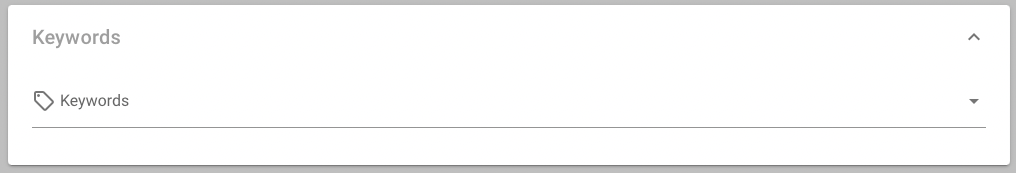

A Dataset Concept may also get Keywords being assigned to it to be better found with specialized terms in searches.

image-20220701124051791

Moving Concepts

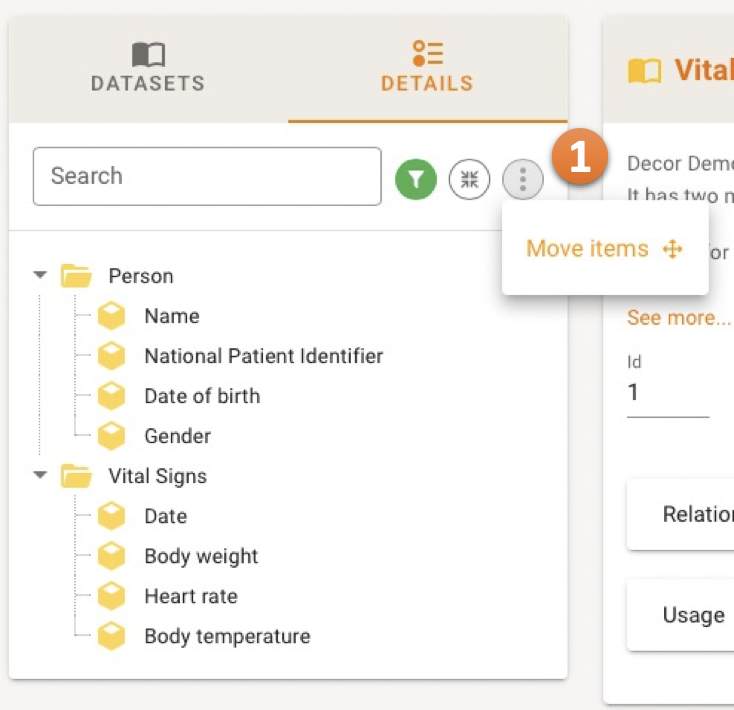

You can also change the sequence or nesting of concepts. This is done through the Navigation Tree where you find a MOVE button 1.

image-20220701105218458

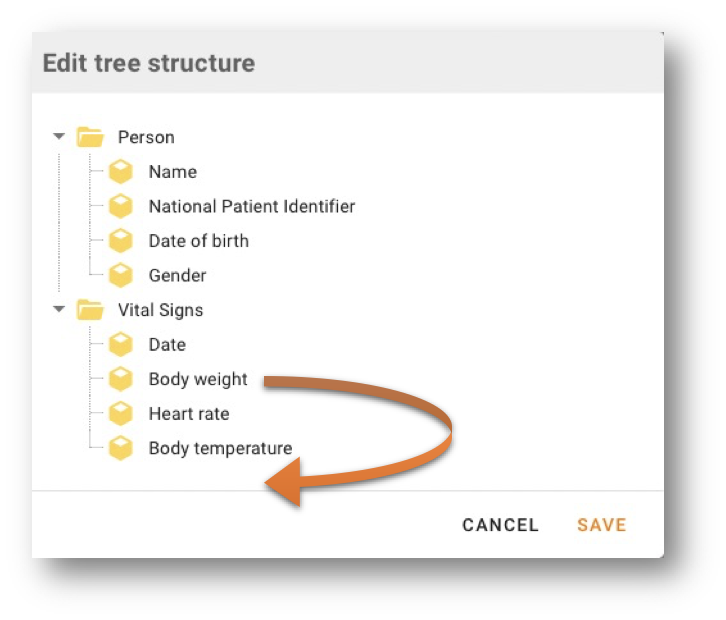

A new window will pop up where you can edit the tree structure by drag and drop concepts within the hierarchy. The SAVE button confirms your moves.

image-20220701105420494

Adding a Concept

Inserting Concepts

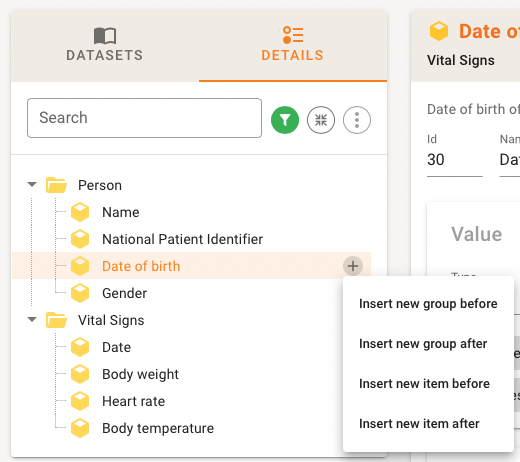

At the right side of each concept in the Navigation Tree a little PLUS button offers a small menu to insert new concepts.

image-20220701105715334

To add a new concept option are offered to choose from on how to insert the new Concept. The new Concept (group or item) may be added before or after an existing one, when the selected Concept is a group the new Concept may also be inserted also into that group.

image-20220701105842865

New Concept's details

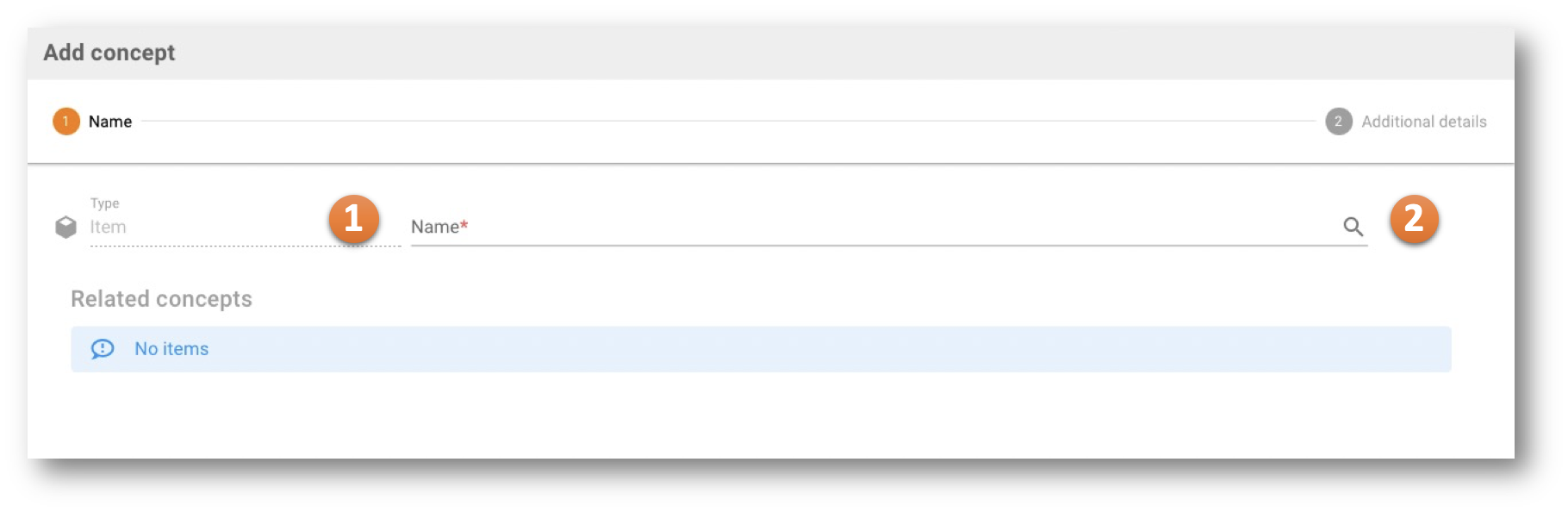

When adding a Concept a dialog is offered to assign a name to the Concept 1.

image-20220701115753139

Inheritance / Containment

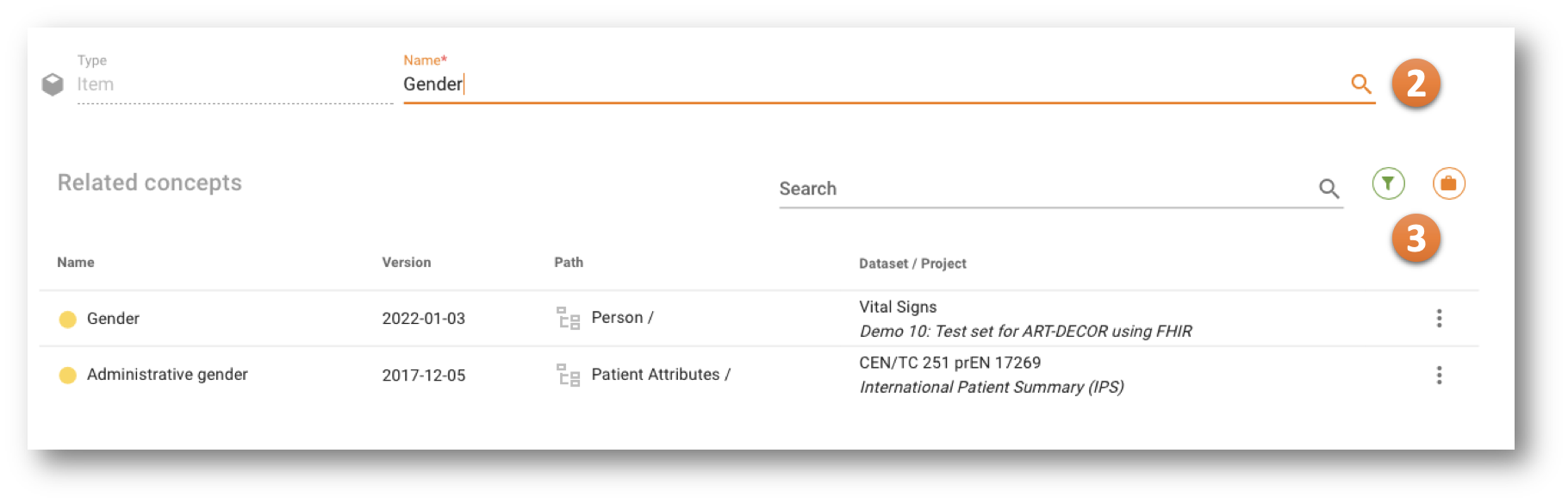

As re-use is a focus topic of ART-DECOR you can also click in the search icon 2after entering a name and search for similar concepts in opther projects to optionally use them (inheritance / containment) instead of creating a possible duplicate in your project. The list of similar concepts is offered in the Related Concepts table after search. Your search can be filtered either by the usual Status code or Project 3.

image-20220701115724611

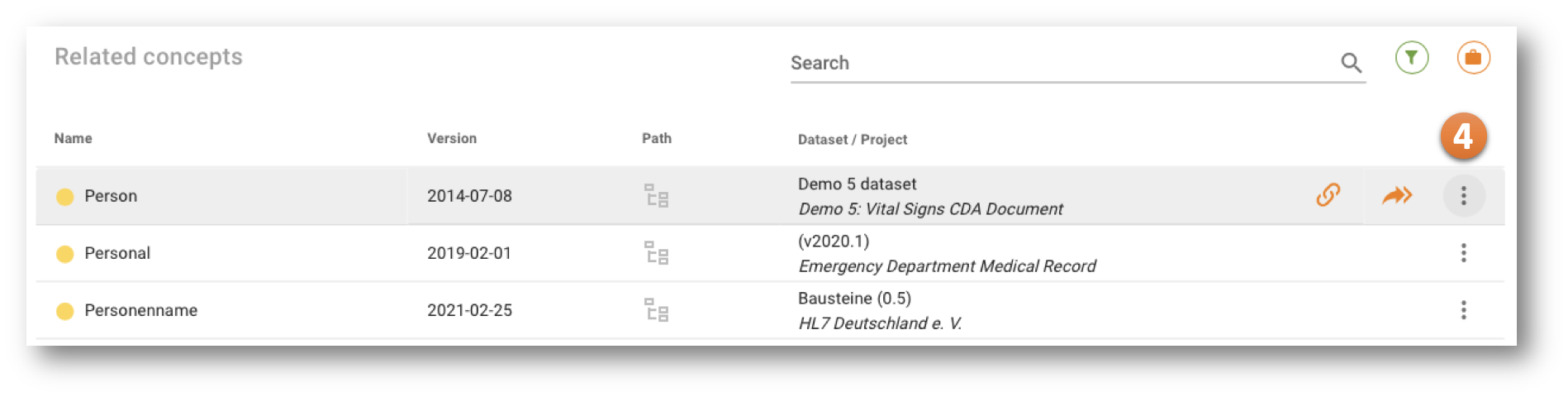

The menu next to each found Related Concept offers the chain symbol that allows to specify Inheritance of the concept. When the selected concept is a group, also the Containment option is also offered. To learn more about Inheritance and Containment of Concepts see our introduction here, if you want to deal with Inheritance and Containment, refer to the section here.

image-20220701120958450

Et voilàopen in new window: a new inherited or contained concept has been added to the dataset.

WARNING

You cannot inherit from datasets residing in experimental projects. Project flagged as experimental are always invisible to other projects regarding data set elements inheritance.

New (own) Concept

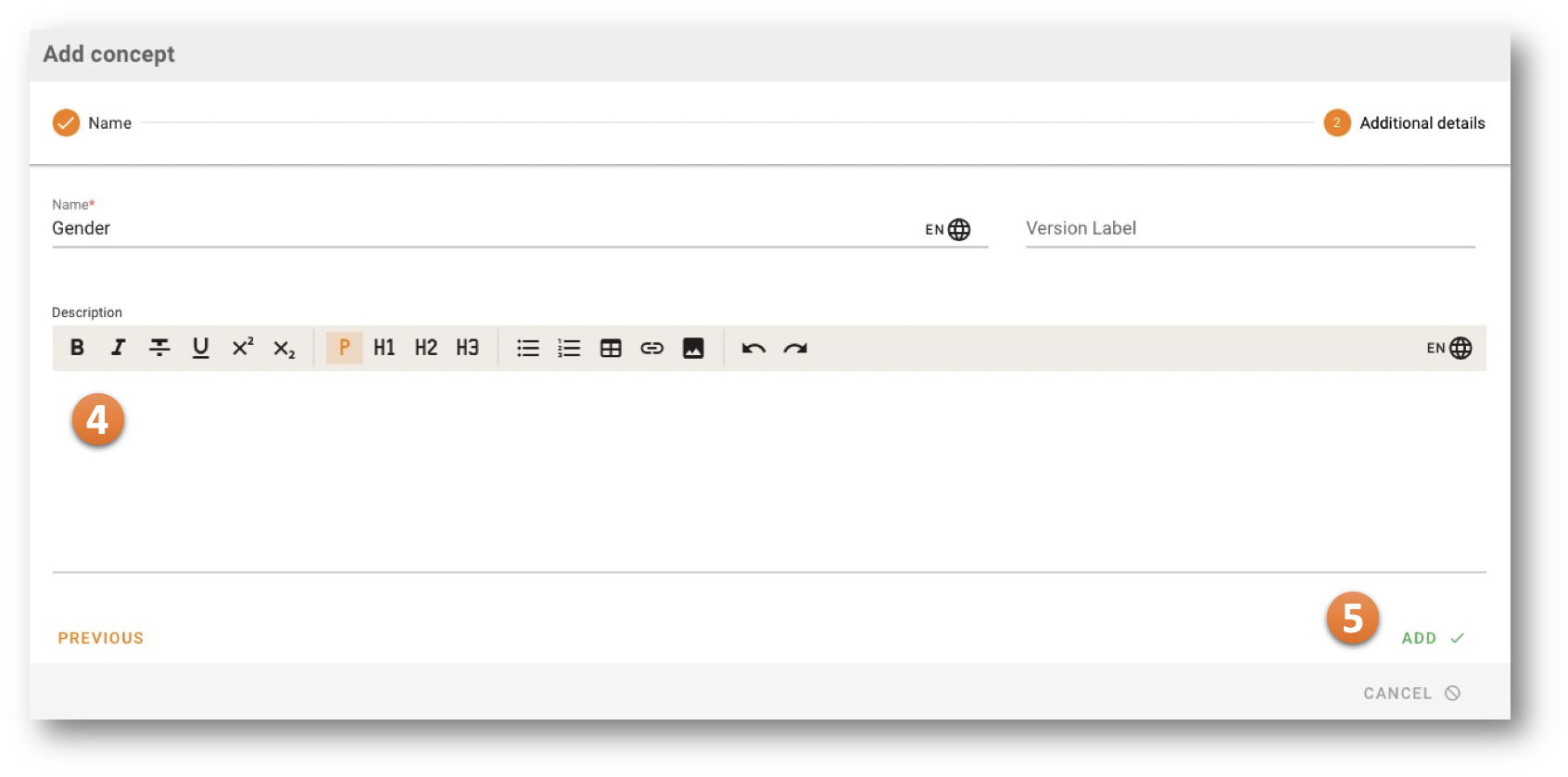

If creating a new Concept, click on the NEXT button then to add more details, especially a description 4. Eventually click on ADD 5 to add the new concept to the dataset.

image-20220701120134649

Et voilàopen in new window: a new concept has been created and added to the dataset.

Concept inheritance and containment

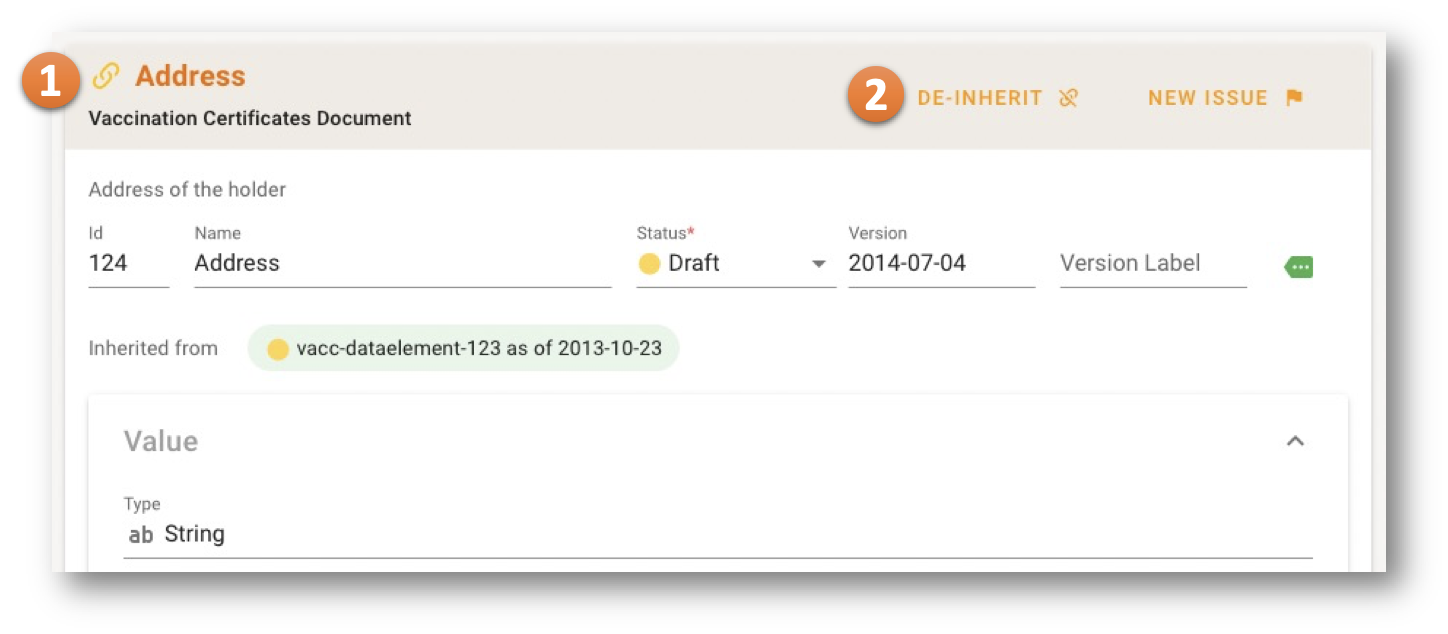

Inherited concepts apear with a colored chain symbol 1. If you choose to alter an inherited concept, you first have to de-inherit the concept 2.

image-20220701122111623

Dealing with Inherited Concepts

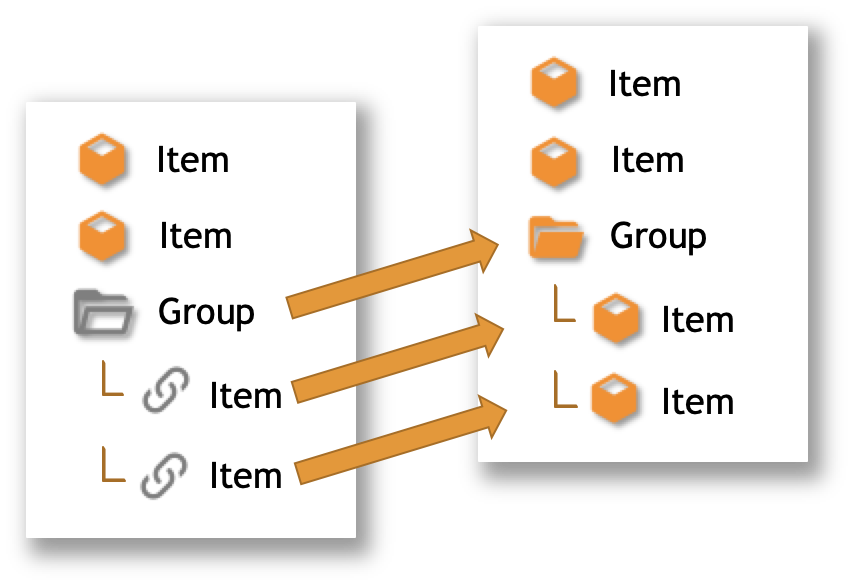

Inheritance is a „copy of a design“. Upon creation of an inherited concept, a structural copy is created from another location into the current data set (left), containing references to each and every concept in the source (right).

image-20220701125552318

If a concept in a dataset is inherited from another dataset, the status icon is actually a chain symbol for items and a outline folder for groups in the respective color.

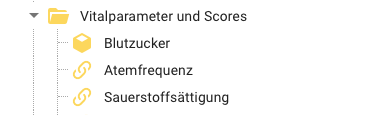

In this example the item Blutzucker is a genuine project item while Atemfrequenz is a inherited item from another dataset, so it carries the appropriate symbol.

image-20210929172318060

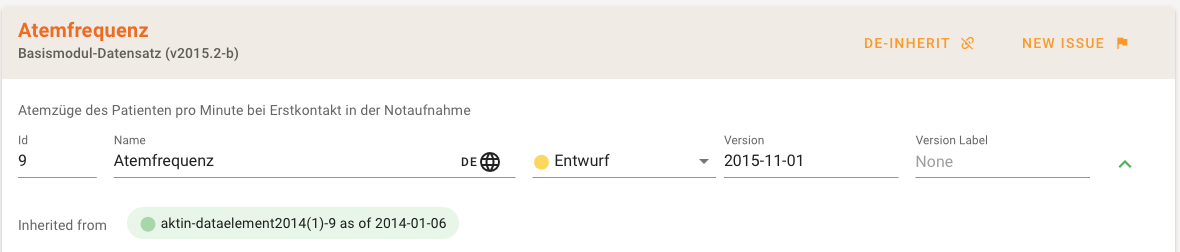

This is also shown in the Detail view of the concept, see last row in this example.

image-20210929170154069

In order to be able to edit an inherited concept, you must de-inherit the concept first.

In the example above you can easily do that through a special DE-INHERIT button with a un-link symbol in the Dataset Concept Detail Top Bar. After this action the concept is copied to your project with all properties including a relationship indicator to the formerly inherited dataset concept.

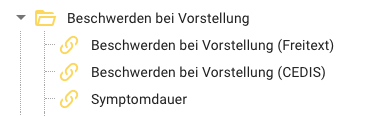

In a hierarchical tree, usually also all parent concepts need to be de-inherited. In this example the desire is to alter Symptomdauer that is part of the inherited group Beschwerden bei Vorstellung.

image-20210929170207538

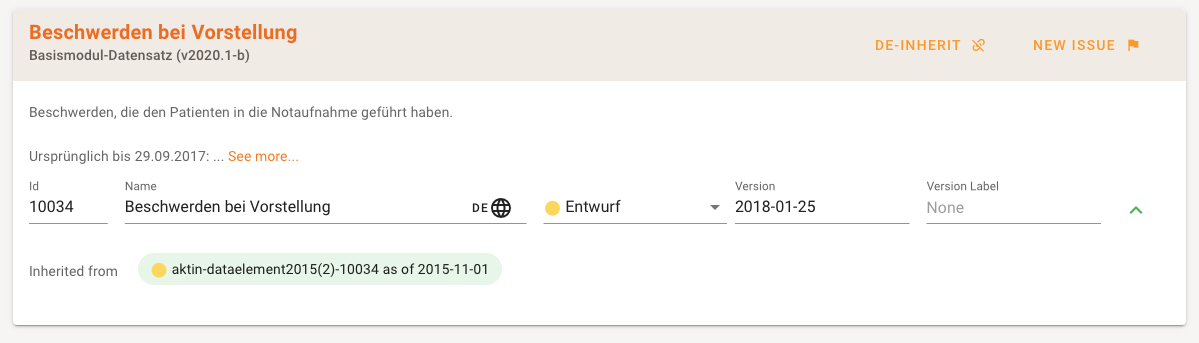

The reason for de-inheriting the group first before you can do anything with its children is, that you are potentially altering the semantics of a concept and therefore potentially also the semantics of all parent concepts. Therefore you need to de-inherit your target concept and all parents to indicate to anybody, that there is a possible change in the meaning of that group/block or concept. De-inherit all parent concepts as well first, i.e. here the group Beschwerden bei Vorstellung. To de-inherit a concept, a special DE-INHERIT button with a un-link symbol appears in the Dataset Concept Detail Top Bar as demonstrated above already.

image-20210929170222380

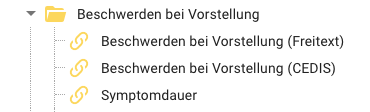

After that you can de-inherit the desired concept Symptomdauer in the same way and edit it.

image-20210929170236537

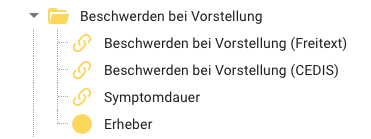

After having de-inherited the group you might now also add or change items in the group, as an example to add another element to the de-inherit group, called Erheber.

image-20210929170255286

After this action, group Beschwerden bei Vorstellung has a normal group symbol and a changed definition because Erheber has been added. Beschwerden bei Vorstellung (Freitext) is obviously left untouched so far (still has the chain symbol).

Dealing with Containment

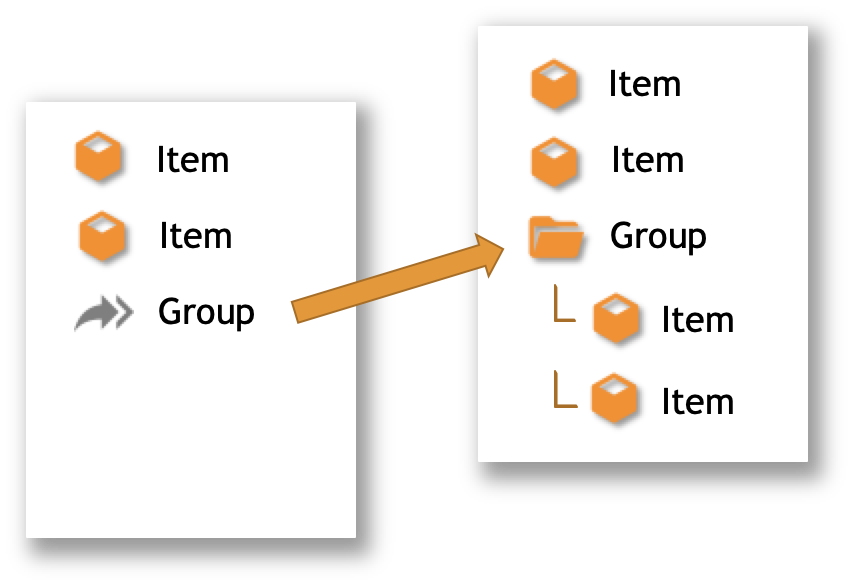

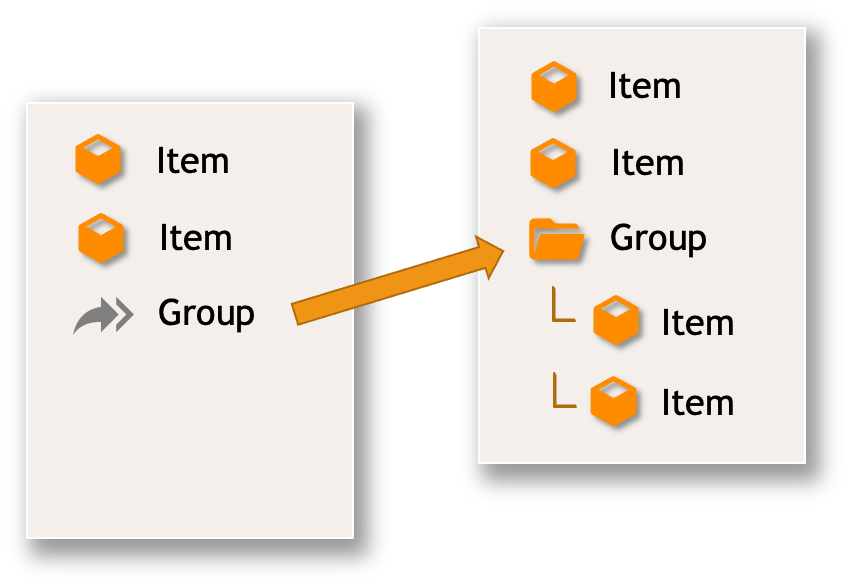

Containment is a true reference (à la “sym links” in other contexts) of a Concept Group. Upon creation of a concept, this is a transparent link to an original concept at another location, denoted with the "share all" icon. Containment is only possible with groups.

image-20220701125149297

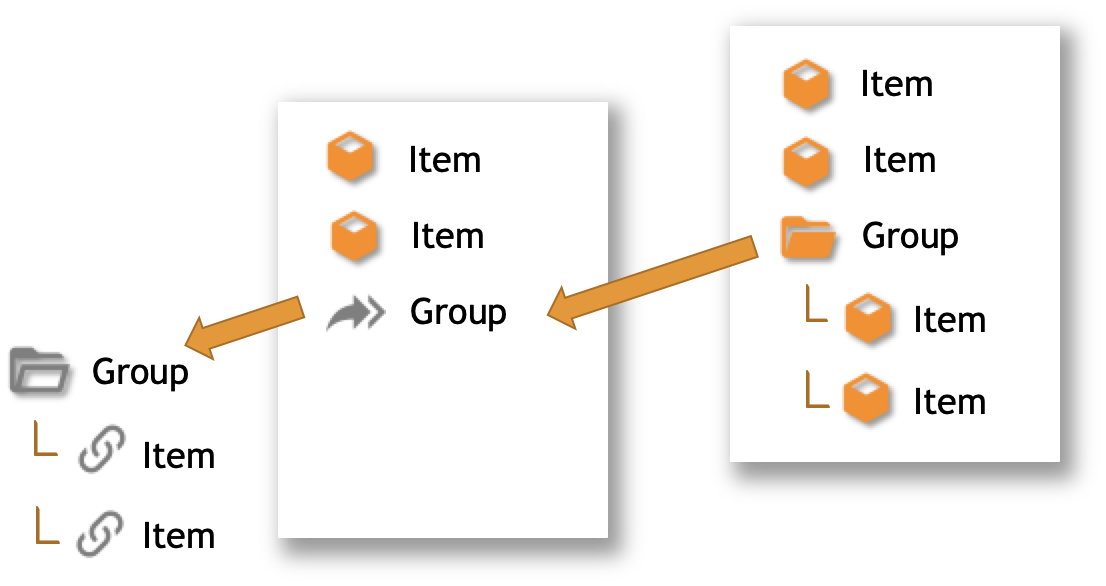

It is possible to transition a containment relationship into a true inheritance relationship. For that purpose the DE-INHERIT / DE-CONTAIN button is offered. The original group is turned into a set of inherited concepts. An inherited group is denoted by the open folder outline symbol, inherited items by the chain symbol.

image-20220701125710065

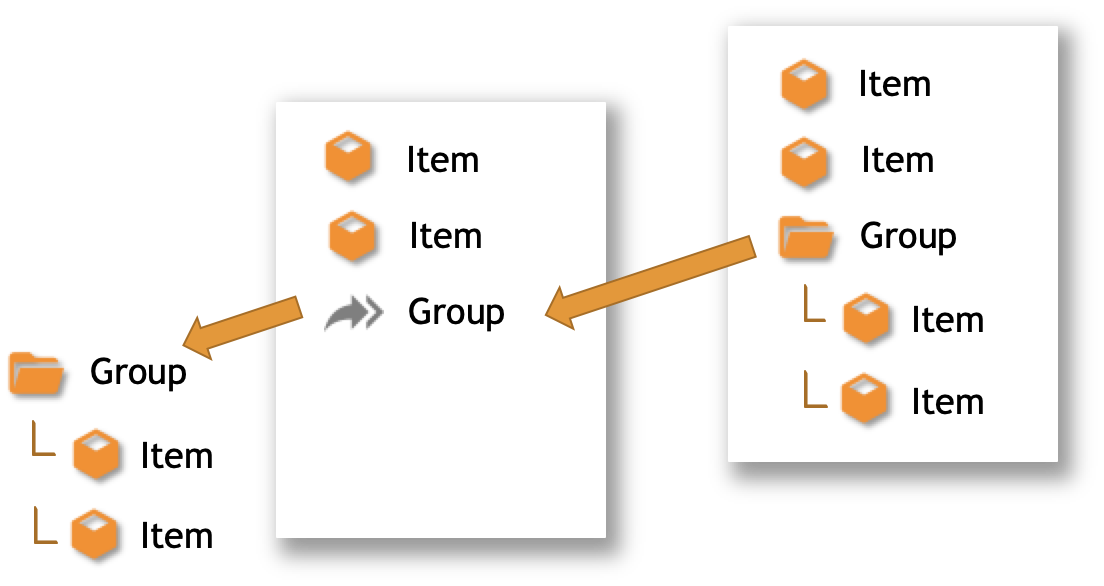

It is also possible to transition a containment relationship into a true copy. It causes also a relationship indication to the original ("concept comes from this original concept"). For that purpose the formal inheritance indicator is replaced by an informal relationship indicator.

image-20220701125903855
