Value set

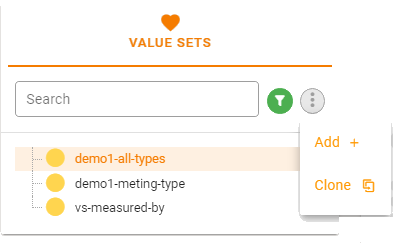

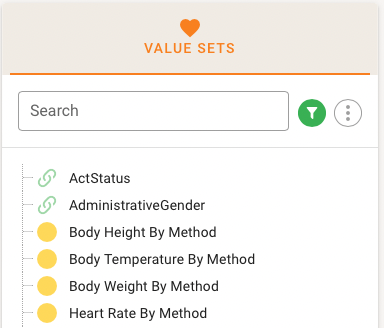

The Panel offers the list of all Value Sets of the Project, sorted alphabetically and indicating whether they are in-project Value Sets (plain colored icons) or references from a Building Block Repository BBR (chain symbol).

image-20220126161021364

Concept Lists (Compositions)

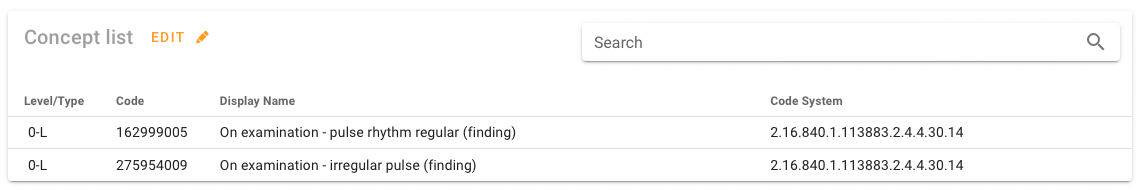

Once a value set is chosen from the Navigation Tree, the right card shows the details of the Value Set (metadata) including the Concept List.

image-20220126120314693

Concept Lists are composition of a concrete set of codes (extensional Value Set, like in the example above) or contain instructions basically of inclusion and exclusion of codes (intensional Value Sets), that are typically drawn from a hierarchical code system. Intensional Value Set definitions are not expanded but shown as the definition itself, e.g. Include.

image-20220126122154735

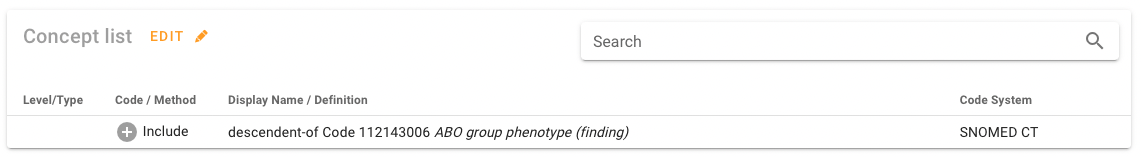

The example above is a small intensional Value Set that includes a single SNOMED-CT code with the instruction to expand this on demand to all codes hierarchically under this code. The expansion is done on demand at "runtime" and leads to an Expansion Set. Intensional Value Set definitions are not expanded by default but shown as the definition itself, e.g. Include.

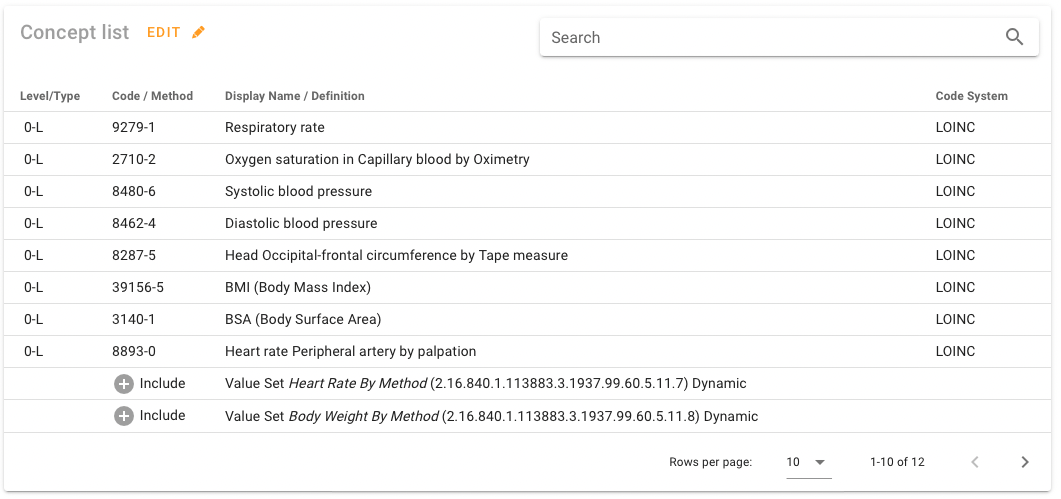

Mixes of concrete lists of codes and instruction are also possible.

image-20220126161157393

Designations

Value Set Codes may have designations with types and in different languages. A designation adds extra information to the display name.

Types of a designations

From a clinical terminology viewpoint, a type of a designation is a selection of one of the following choices. Some definitions and examples have been drawn from Henriksson A, Conway M, Duneld M, Chapman WW. Identifying synonymy between SNOMED clinical terms of varying length using distributional analysis of electronic health records. AMIA Annu Symp Proc. 2013 Nov 16;2013:600-9. PMID: 24551362; PMCID: PMC3900203, modified.

Preferred Term

A Preferred Term is a common preferred or acceptable phrase or word used by clinicians to name a concept in a language context. In contrast to the Fully Specified Name, the Preferred Term is not necessarily unique. It can be a Synonym or preferred name for a different Concept.

There is exactly one Preferred Term in a given language.

Examples from SNOMED-CT

Clinical Context: Myocardial Infarction

Myocardial infarction is the Preferred Term

Clinical Context: Depression

Depressive disorder is the Preferred Term

Fully Specified Name

A Fully Specified Name is an unambiguous string used to name a concept.

Examples from SNOMED-CT

Clinical Context: Myocardial Infarction

Myocardial infarction (disorder) is the Fully Specified Name

Clinical Context: Depression

Depressive disorder (disorder) is the Fully Specified Name

Synonym

A Synonym that can be used as an acceptable alternative to the PreferredTterm. A concept can have zero or more synonyms in a given language.

Examples from SNOMED-CT

Clinical Context: Myocardial Infarction

Common synonyms: Myocardial infarct Heart attack Infarction of heart Cardiac infarction MI - myocardial infarction

Clinical Context: Depression

Common synonyms: Depressed Depressive illness Depression Mood disorder of depressed type Depressive episode

Abbreviation

An Abbreviation is a shortened form of a word or phrase used in place of the whole word or phrase. This includes acronyms as a word or name consisting of parts of the full name's words. Please use Abbreviation with care as they have the potential for misunderstandings.

Examples from SNOMED-CT

Clinical Context: Myocardial Infarction

Common synonyms: MI

Clinical Context: Bone fracture

Common synonyms: FRX FX #

Clinical Context: Computerized Tomography

Common synonyms: CT MRI

WARNING

Abbreviations may need context to properly interpret them.

Example: MI is Myocardial infarction but also Mitral insufficiency or Mental institution. Beyond the healthcare topic it yould even mean Military Intelligence.

Descriptions

You may add descriptions, one per given language.

A visual example

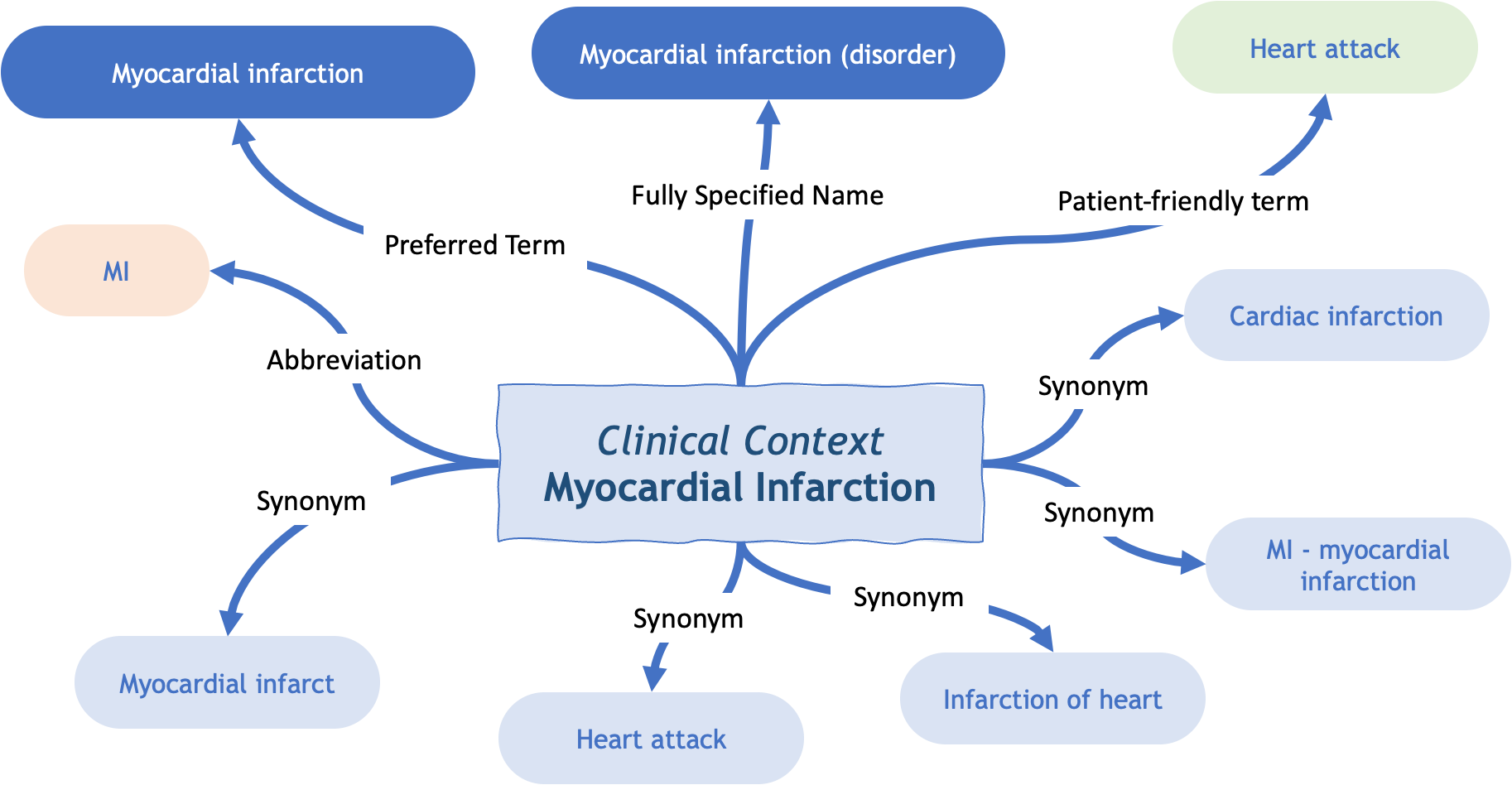

The above-mentioned Henriksson A, Conway M, Duneld M, Chapman WW published a figure about the relationship of terms (and types of designations) to a clinical context. This is an adapted figure to show this based on the Myocardial infarction example.

image-20231122165408933

Designations in Value Set Panel and Terminology Browser (view)

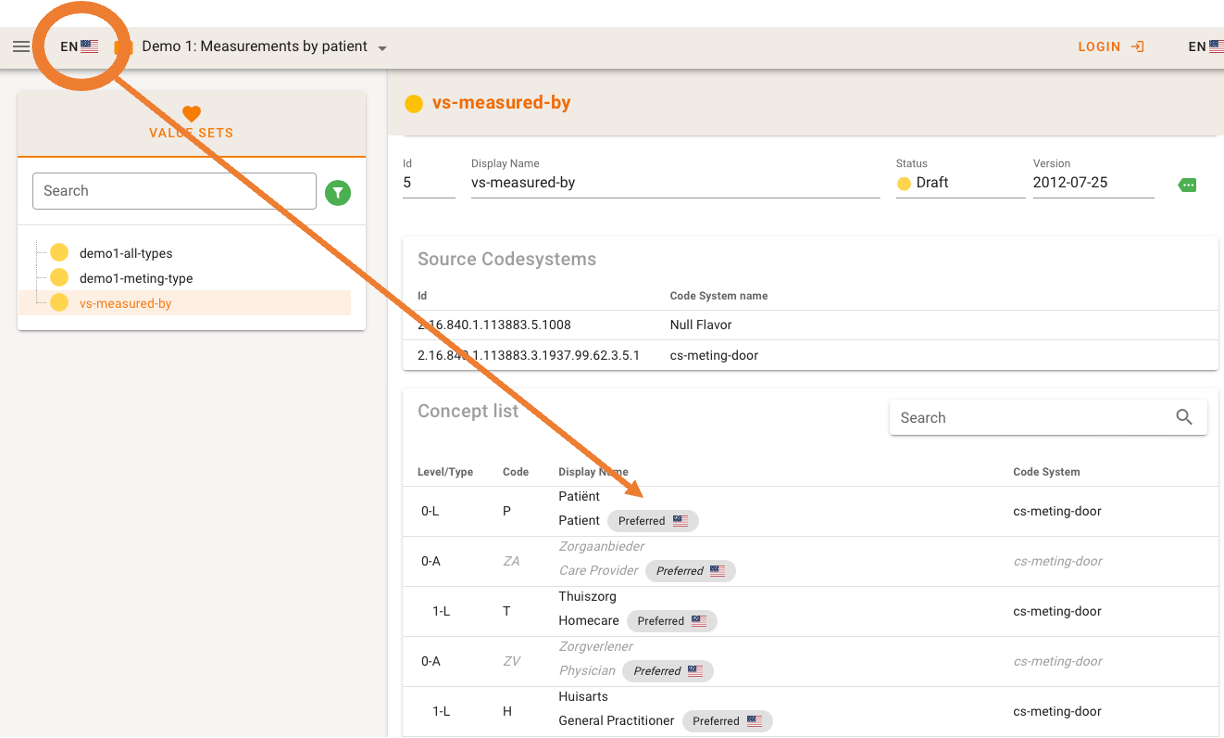

The designations for the selected project language are shown if present. This can be seen in the value set panel, but also in the Terminology Browser. You may switch visibility on/off, so, if it would pollute the view too much, you could toggle designation's visibility.

image-20231122120542394

Terminology Browser as Editor

When editing a Value Set (which is done as a Composition in the Terminology Browser) you will see designations for the selected project language only when looking at the Composition as a whole. However, if there are more designations this is indicated by a "+n" addition next to designation.

image-20231122122710901

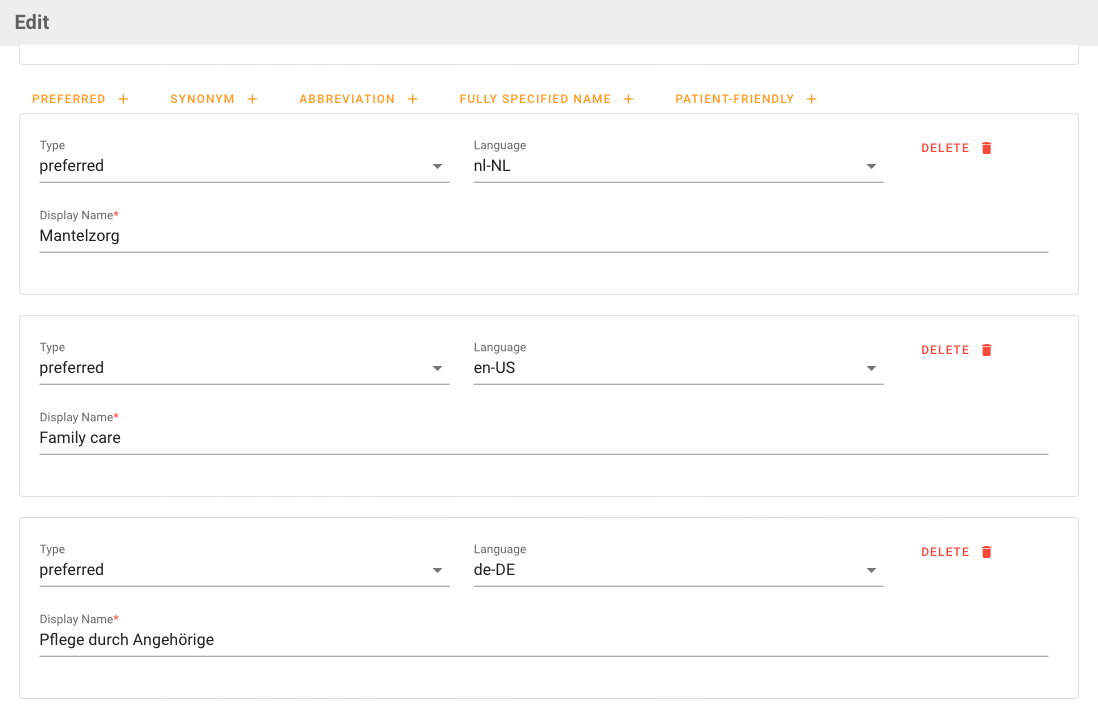

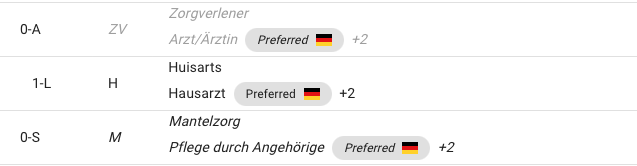

If you edit a specific concept in the Terminology Browser, you would see the designations for all the languages that are available.

image-20231122122750336

Value Set Authoring

A Project Author in ART-DECOR can create new Value Sets and modify or clone already existing ones.

Creating and editing a Value Set

Extensional Value Sets

Editors of a project may create new Value Sets through the Value Set form or clone an existing Value Set. By choosing ADD from the Panel menu you can add a new Value Set or clone an existing Value Set.


The Terminology Browser is not only used for browsing. For the purpose of creating or editing Value Sets, the author is redirected from the Terminology Panel to the Terminology Browser. In addition to the search field (and possible search results), the existing Composition is shown at the bottom. You may need to scroll on larger search result lists to see the Composition Card. When adding a new Value Set the Composition is initially empty, of course.

image-20220126120254484

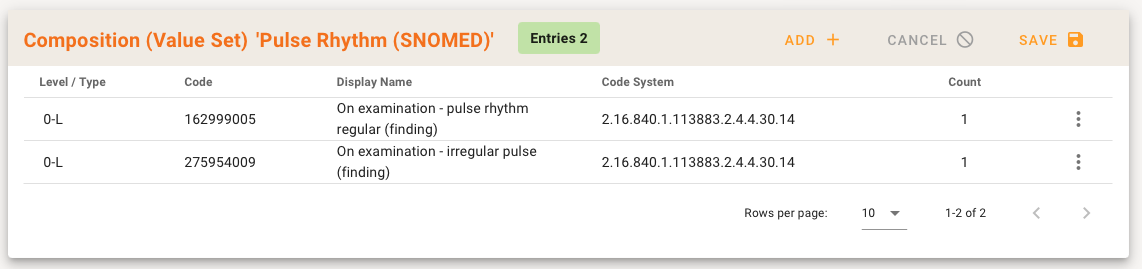

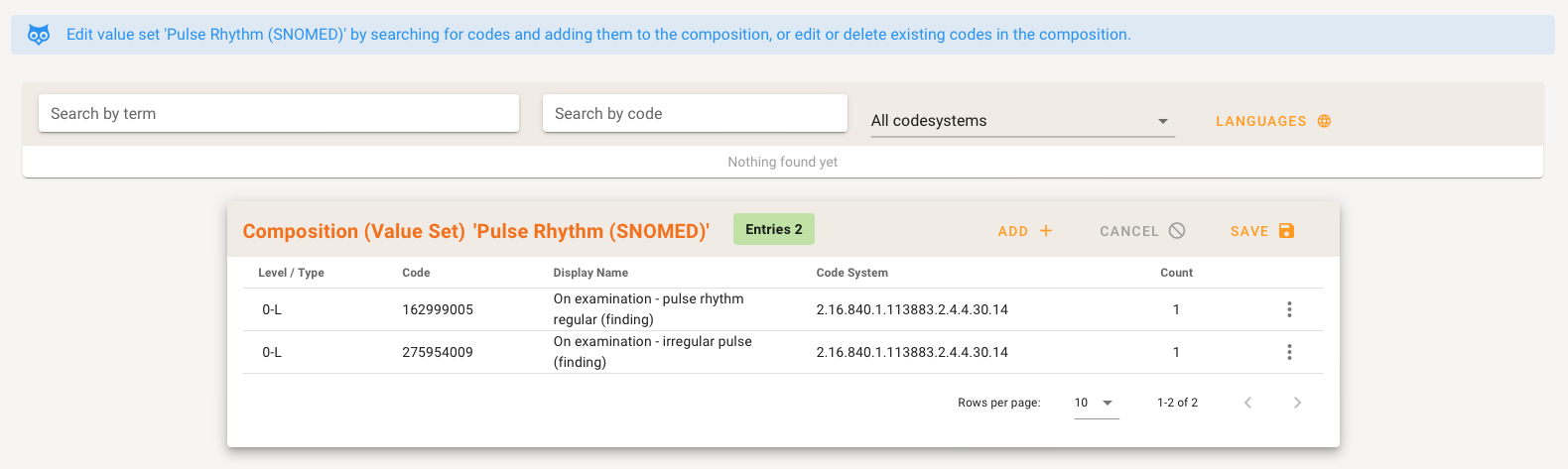

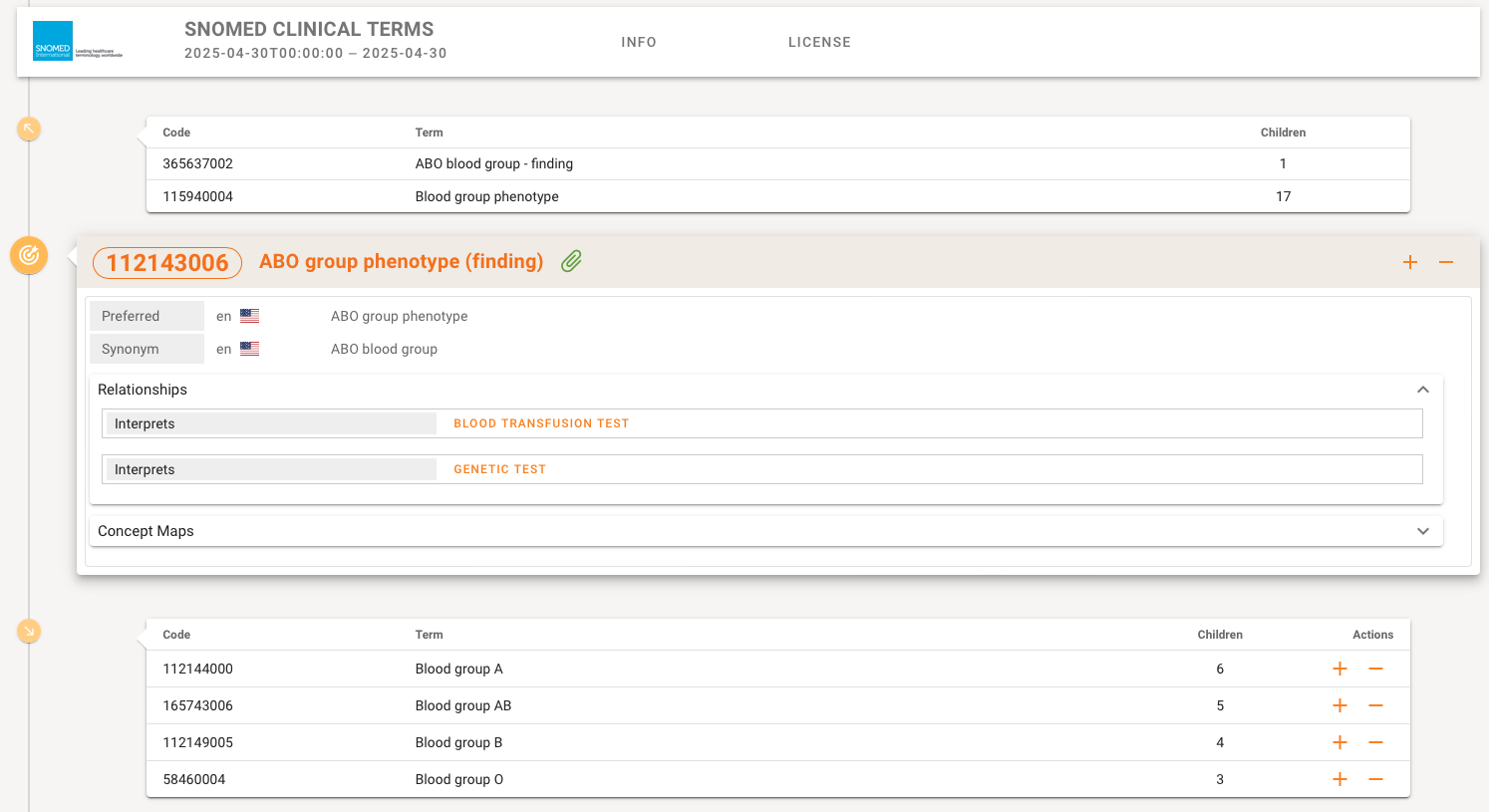

The Value Set Composition can be completed by adding terms that have been found, or by adding single coded items. When adding an item to the Value Set Composition, the author get the opportunity to add new codes from his search, or individual codes, and edit the Value Set Composition.

image-20220126121454467

Adding a code manually

In some cases it might be useful to manually add a code to a Value Set. To do so, click the '+'-icon under the actions menu (three dots).

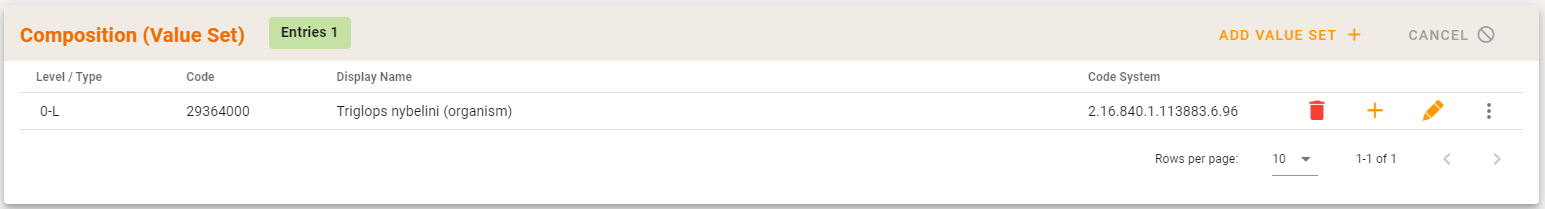

Actions menu for adding a code manually

A dialog is offered to fill in the details of the code.

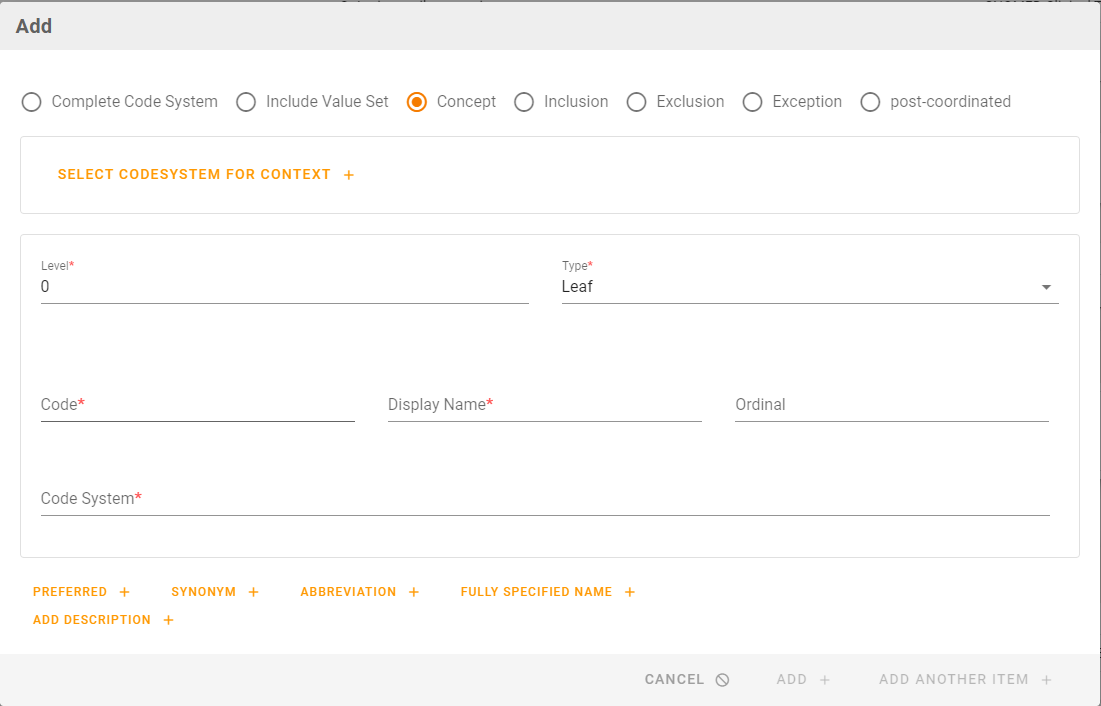

Dialog for adding a code manually

Select codesystem for context can be used as a convenient way to fill in the "Code System" field.

When all required fields are populated, the code can be added to the Value Set.

Searching in Project specific code systems only

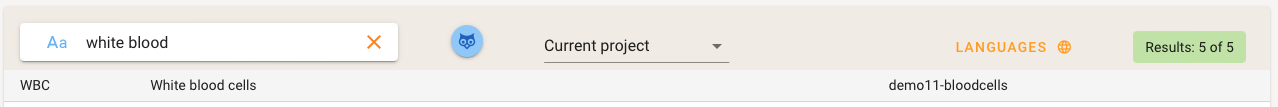

To add a code from a proprietary code system of your own project one can select “Current project” as the selected code system to use for search.

image-20240105161337412

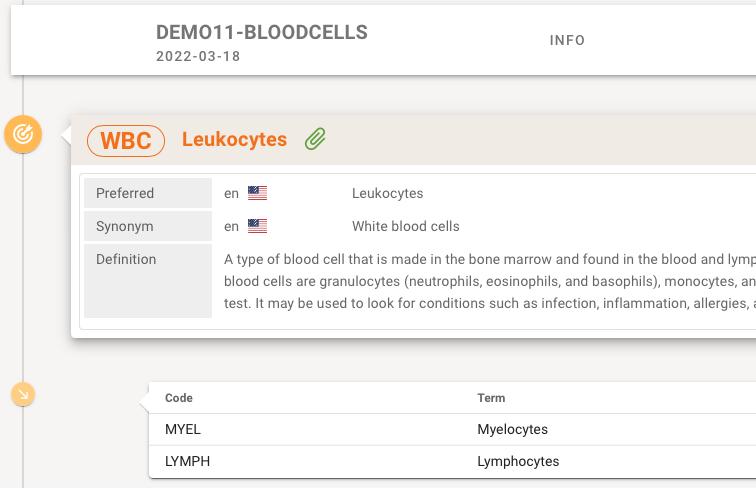

Once entered a term or code for search the own project code systems are searched and results are displayed as usual, i.e. as for any other code system.

image-20240105161418000

NOTE

Please note that searching in proprietary project code systems is only supported for code systems that are stored as part of the Centralized ART-DECOR Terminology Services (CADTS). Usually this happens automaticall whenever a project code system is edited and saved.

Intensional Value Sets

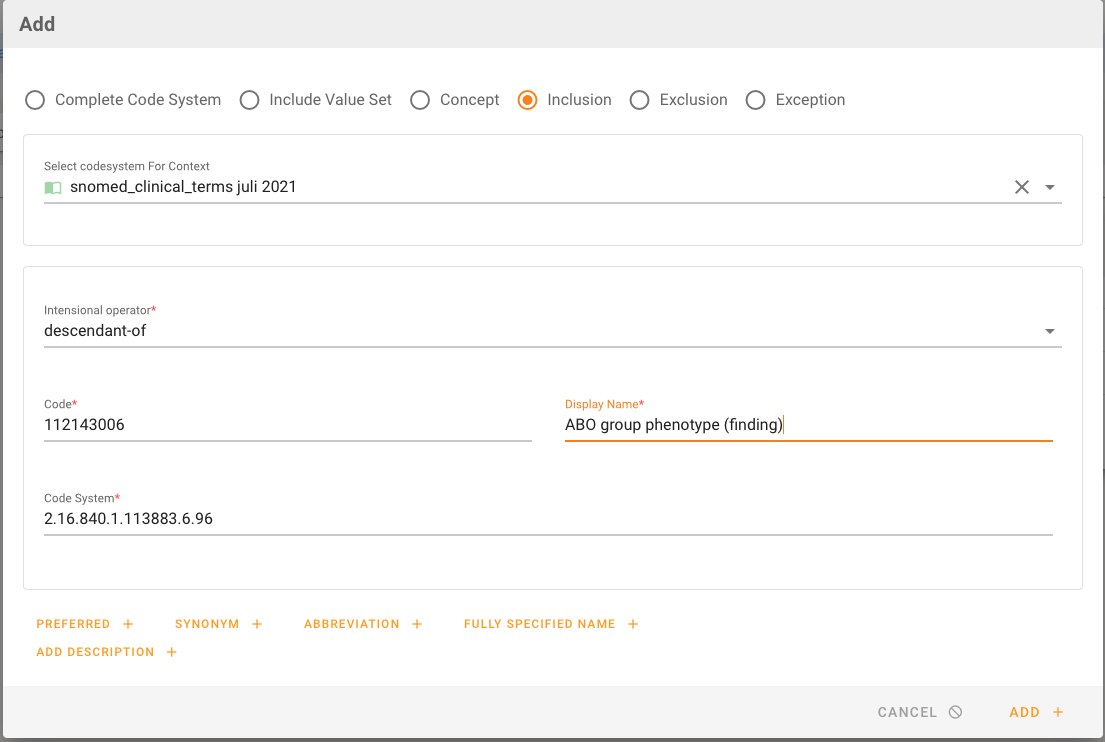

This example shows the inclusion of an intensional Value Set definition from SNOMED-CT, specifying all descendents of the entered code.

image-20220126122115868

Please also note, that editing a code of a composition also offers a variety of other options, including entering types of designations such as

  • Preferred Terms
  • Synonyms
  • Abbreviations
  • Fully Specified Names and
  • Descriptions.

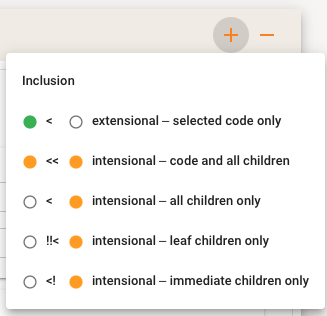

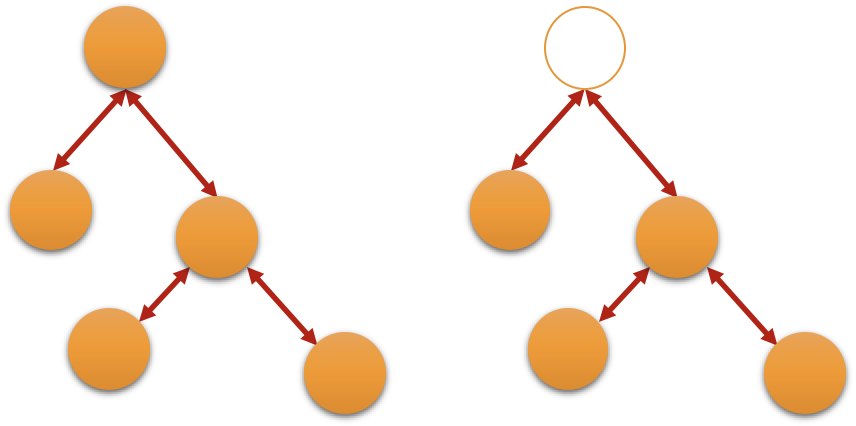

The intensional operators typically are is-a (the specified code and all children codes, see the left part of the following figure), or decendent-of, which means the children only. The following figure illustrates these two options.

image-20220624144354572

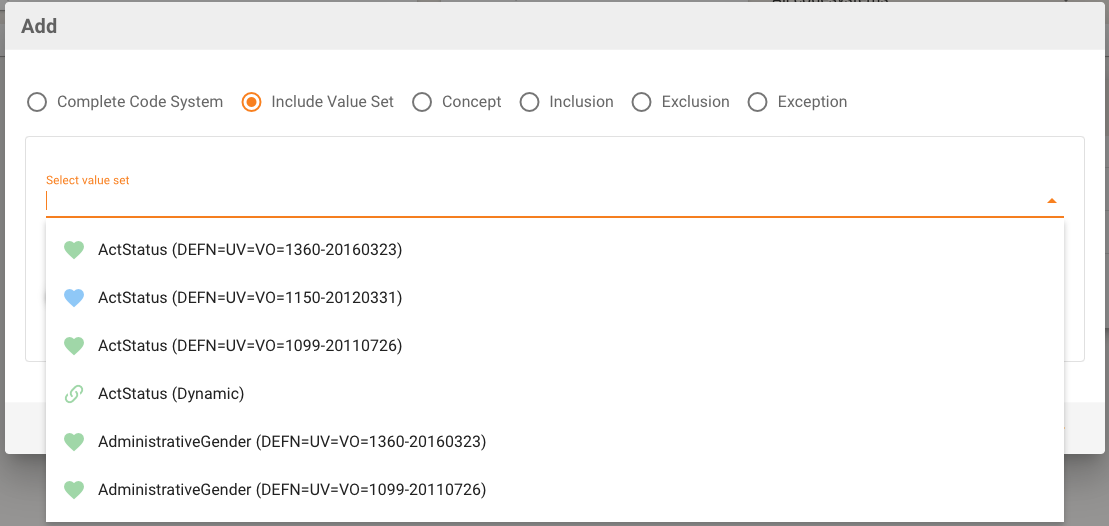

Next to inclusion also exclusion is possible which makes sense of a part of an already included tree shall not be part of the expansion. One can include complete Code Systems or Value Sets from the project. This example shows the inclusion of an intensional Value Set definition, specifying to include a whole Value Set from the project. The reference to a Code System or a Value Set used in intensional expressions can be done dynamically (always the most recent version), or fixed for a specific version.

image-20220126121742994

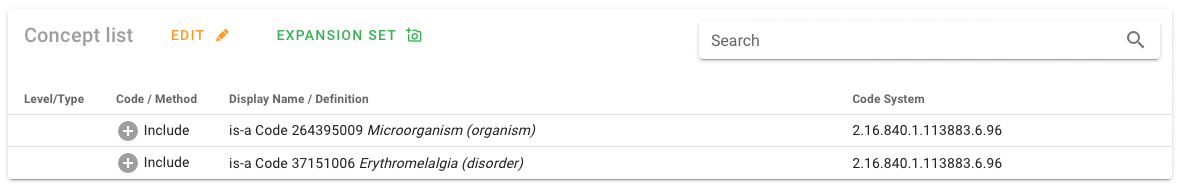

You can expand intensional value sets if they are CADTS aware. If so, the Composition in the Value Set Panel shows the Expansion Set button.

image-20221122184107782

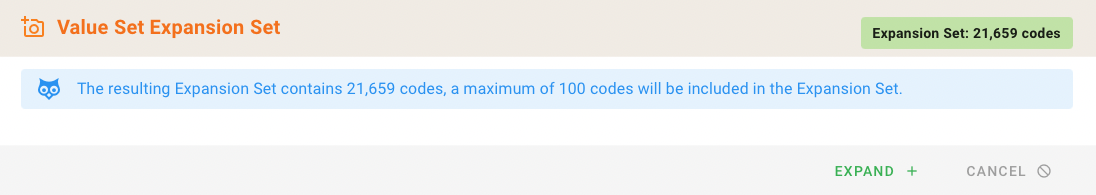

Clicking on the button opens a dialog that first presents the count of items in the Expansion Set. This is usually quick, e. g. 300,000 codes counting members of the Expansion Set takes around 2-3 seconds.

image-20221122184504724

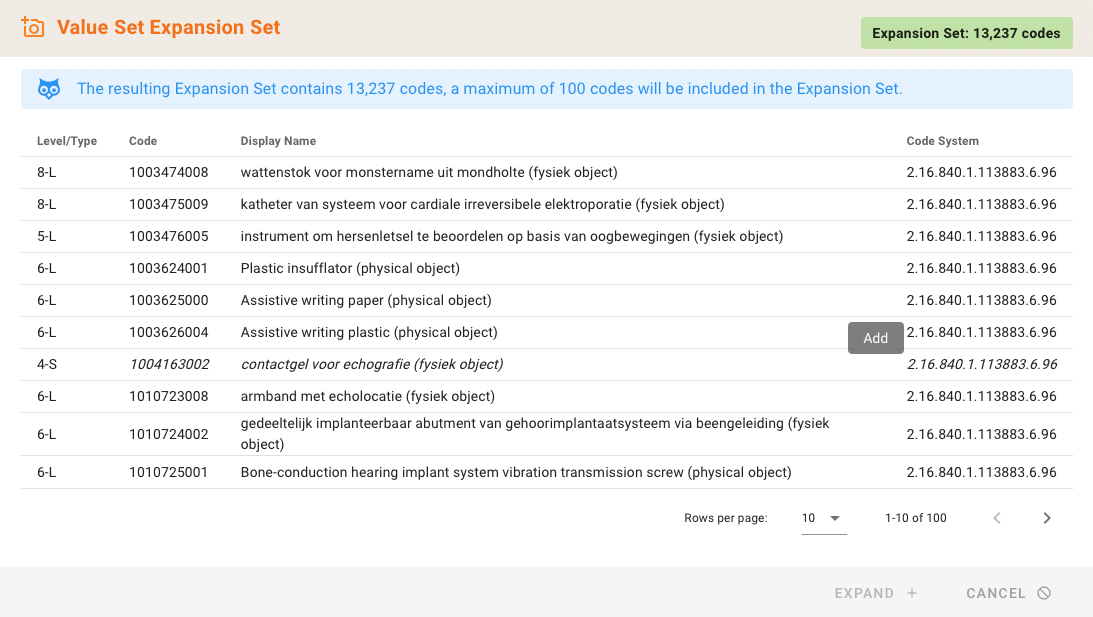

The Expansion Set can also be inspected, showing only 100 codes. Later releases will allow to store Expansion Sets.

image-20221122184551990

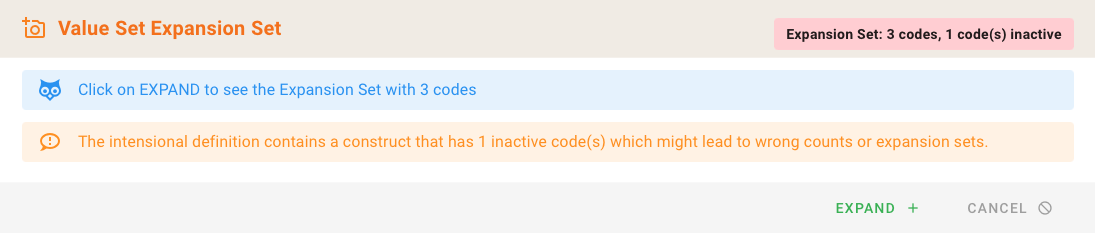

Please note that if an intensional definition contains a construct that has inactive codes this might lead to wrong counts or expansion sets. It is indicated if detected as follows.

image-20221122184616994

Intensional Value Sets also support Complete Codesystems with filter options. A Codesystem can be included completely (only the codesystem need to be mentioned) or may be included with a filter that selects only certain codes from the system.

The include Complete Codesystems with filter dialog has the following required components:

  • a mandatory Codesystem from the project with optional flexibility
  • one or more optional filters, each with a mandatory property, an operator and a value.

There are some Filter Examples to demonstrate the following situations.

Hierarchical code system filter

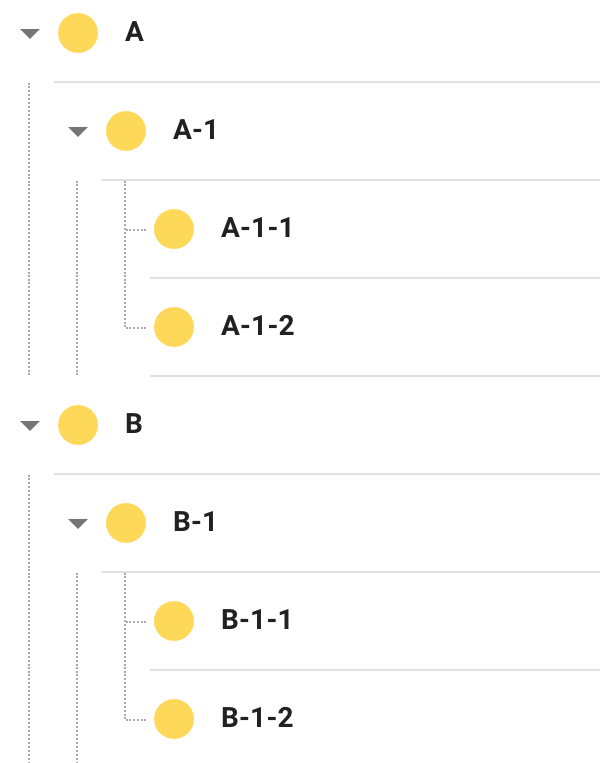

Consider a hierarchical code system H (without any extra properties) with the following hierarchy.

image-20230620113539423

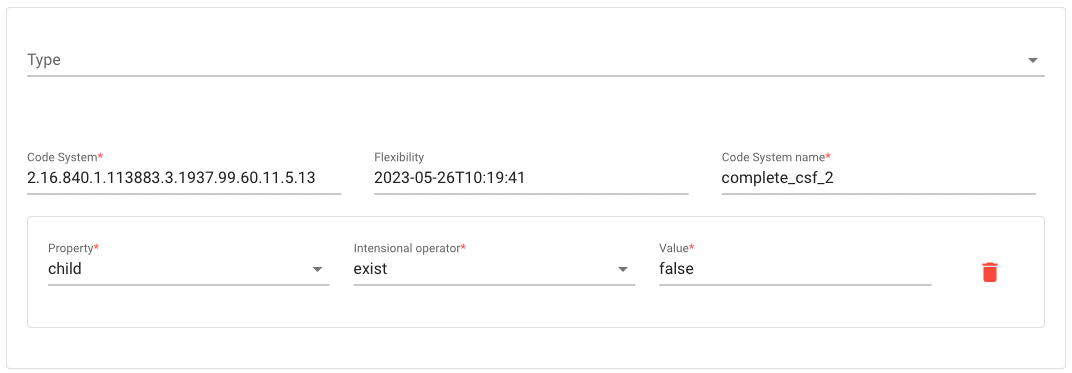

You can now create an intensional value set that shall only include the third level codes (from A-1-1 and A-1-2 etc.) by selecting the complete code system with all codes were CHILD exist false (implicit property filter).

image-20230620114025479

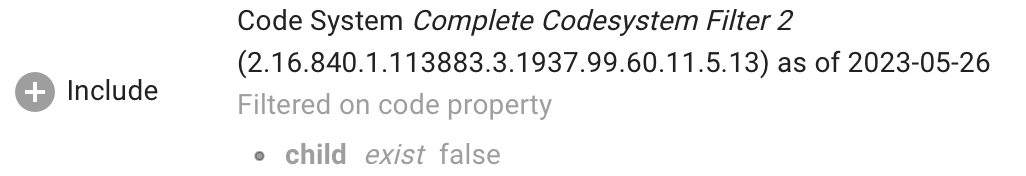

This is displayed in the Value Set definitions as follows.

image-20230620113610669

In the above example the expansion set will include concepts A-1-1, A-1-2, B-1-1 and B-1-2 only.

image-20230620113637761

Code System with Filter by Property

A proprietary code system C is defined and a concept property X is defined.

Code System C

  • has property X type string
  • concept a, property X='A'
  • concept b, property X='B'
  • concept c, property X='A'
  • concept d, property X='C'

You can now create an intensional value set with

  • … the complete code system C, expansion set will include concepts a, b, c and d
  • … the complete code system C with all codes were property X equal 'A', expansion set will include concepts a, and c only

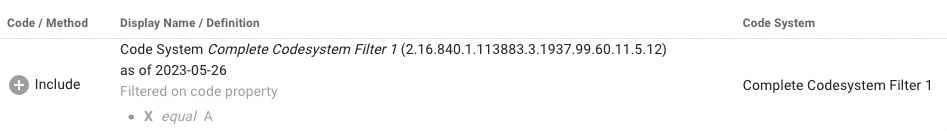

This is rendered as follows...

image-20230620114144698

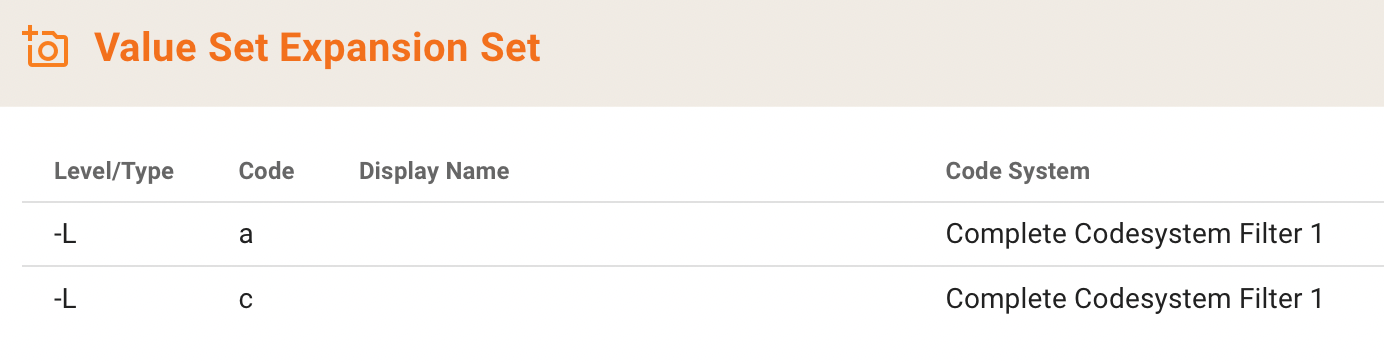

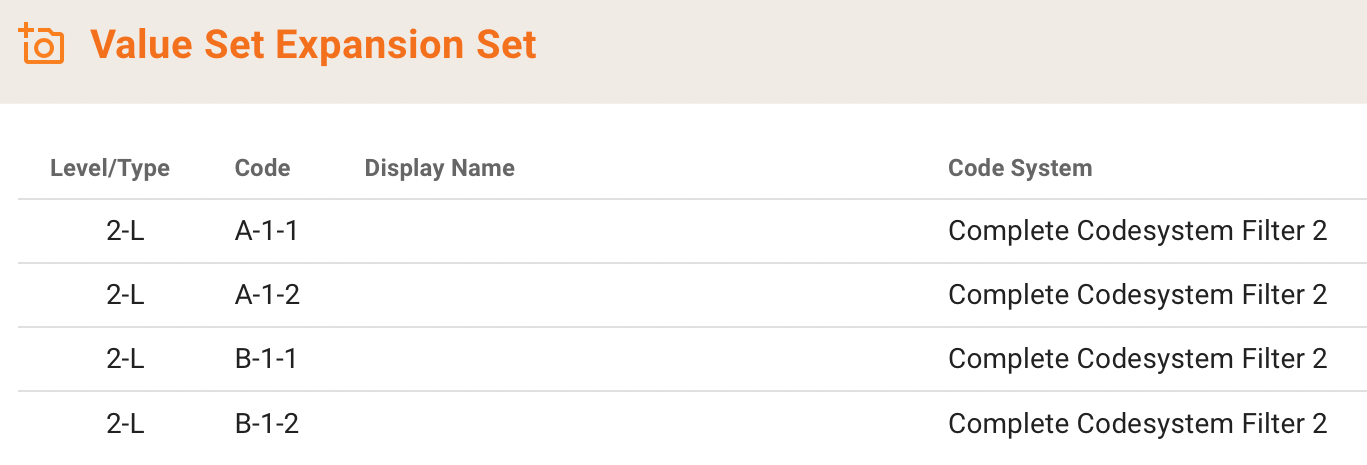

...and this is the resulting Expansion Set.

image-20230620113716084

LOINC example Filter by Property

All LOINC codes were property METHOD = 'Manual count' (explicit property filters)

Internal Format Note

With this feature, the DECOR storage format refrains from using completeCodeSystem tags in Value Set definitions. This has been fixed in updated versions of the API, ART, DECOR-core, DECOR-services, FHIR 1.0, FHIR 3.0, FHIR 4.0, and Temple.

Value Set Expansion for Intensional Value Sets works with SNOMED and all ART-DECOR Code Systems. A future release will allow storage and download of Expansion Sets.

Exceptions

Coded concepts (like for instance nullFlavors in HL7v3/FHIR) can also be added to the Value Set as exceptions rather then regular coded concepts. Exceptions can used to indicate that the data is missing, sometimes possibly including a reason for the absence of the data.

Postcoordination Expression

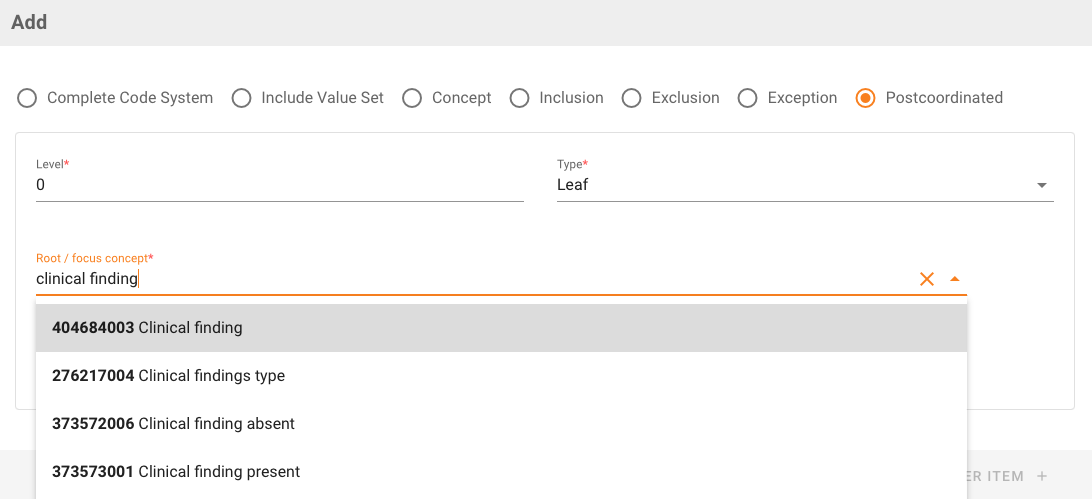

It is also possible to add post-coordinated expressions using SNOMED. When adding or editing an item in a value set, there is also the tab "Postcoordination" offered that gives a dialog with options to enter Level and Type, a Root / focus concept and a set of Attribute-Value codes drawn from SNOMED. In the Root / focus concept and Attribute-Value code fields you can enter search terms that are looked up in the SNOMED code system (given one is installed).

image-20230731114816415

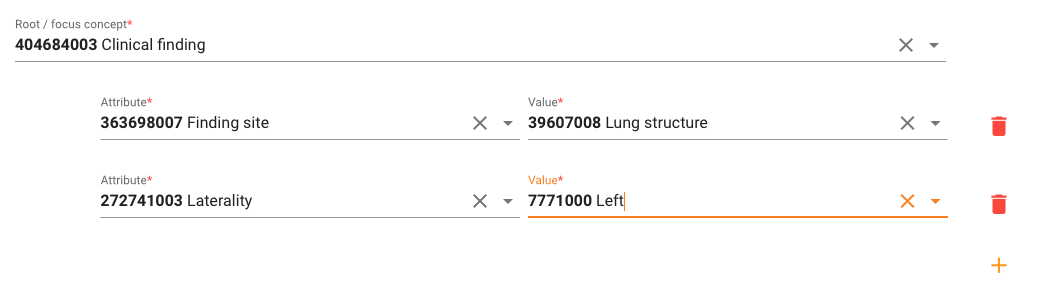

The post-coordinated expression is also checked against SNOMED.

image-20230731115252551

The item appears in the value set as something like in this example.

image-20230731115843142

SNO-POEM

We are working hard on a SNOMED post-coordinated expressions editor based on SNOMED's Expression Template Languageopen in new window (ETL). The methodology is to derive Questionnaires from official (and self-crafted) ETL expressions and render them as a form that is subsequently populated by a user. The SNOMED CT expression template is converted (once) for that purpose to a Questionnaire that is stored in a Building Block Repository and offered to the user through the post-coordination editor (POCE).

The resulting Questionnaire is part of our new SNO-POEM concept. In future Releases we will publish SNO-POEM as a proper alternative to hand-crafted SNOMED post-coordinated expressions.

Cloning a Value Set

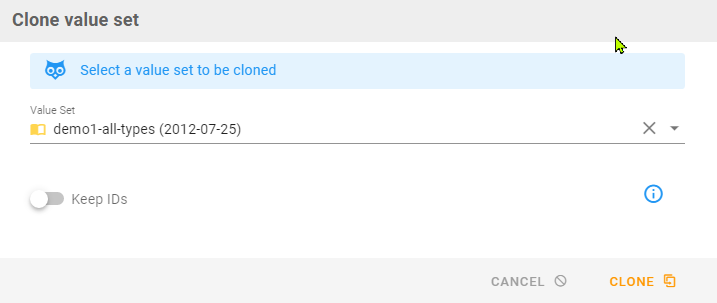

The Panel menu also offers the option to clone an existing Value Set, e.g. for versioning purposes. After you choose the clone option a dialog opens. In the Value Set bar you can search and select the Value Set you want to clone.


Keep ID's

The 'Keep IDs' switch is active by default. A new version of the Value Set will be created. The generated Value Set has the same ID. Effective date will be set to 'now'.

Cloning a Value Set with the switch deactivated will generate a Value Set with a new id (based on the base id for Value Sets). Name, display name and other Meta Data can be edited afterwards.
